BZ-RW822-A2
Basic / Snap Action Switches SPDT 15A 250Vac Roller Lever
廠商型號:
BZ-RW822-A2
芯天下內部編號:
159-BZ-RW822-A2
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches SPDT 15A 250Vac Roller Lever
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
客戶編號:
規格書:
查看PDF

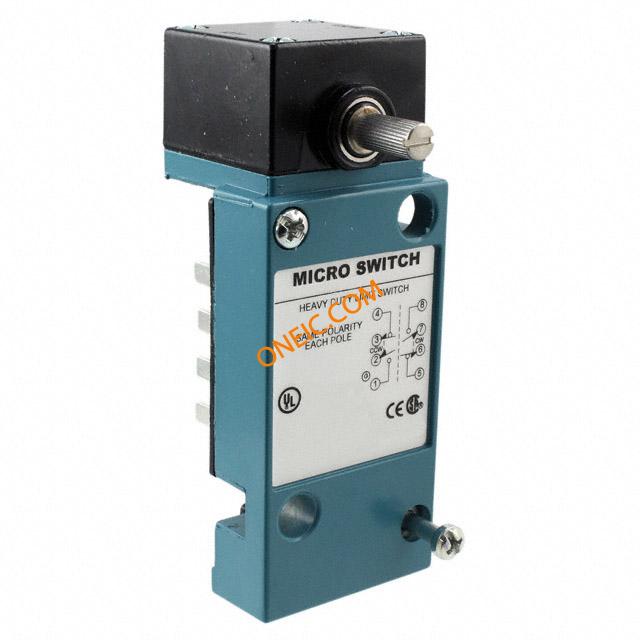

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Basic / Snap Action Switches |
| RoHS | RoHS Compliant |
| Contact Form | SPDT |
| Actuator | Roller Lever |
| Current Rating | 15 A |
| Voltage Rating AC | 480 V |
| Operating Force | 1.53 N |
| Termination Style | Screw |
| Series | BZ |
| Type | Basic |
| Packaging | Bulk |
| Differential Travel | 0.006" (0.15mm) |
| Switch Function | On-Mom |
| Operating Force, Torque | 156gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Operating Position | 1.188" (30.2mm) |
| Overtravel | 0.094" (2.4mm) |
| Operating Temperature | -55°C ~ 85°C |
| Actuator Type | Lever, Roller |
| Standard Package | 5 |
| Ingress Protection | * |
| Release Force | 42.5gf |
| Mechanical Life | 20,000,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Switch Type | MICRO SWITCHa?￠ Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| Sealed | No |
| Ampere Rating | 15 A |
| Circuitry | SPDT |
| Termination | Screw |
| Operating Temperature | -55 ?°C to 85 ?°C [-67 ?°F to 185 ?°F] |
| Voltage | 250 Vac |
| Actuator Length | 26,7 mm [1.05 in] |
| Contact Type | Silver |
| Operating Force (OF) | 1,53 N [5.5 oz] max. |
| Overtravel (OT) | 2,39 mm [0.094 in] min. |
| Differential Travel (DT) | 0,025 mm [0.001 in] max. |
| Material | Plastic |
| Housing Material | General Purpose Phenolic |
| Agency Approvals and Standards | UL, CSA, ENEC |
| Mounting Screw Size | 3,53 mm [0.139 in] |
| Mounting Centers | 25,4 mm [1 in] |
| Tightening Torque | 0,33 N m [3.0 in lb] |
| Weight | 24,94 g to 34,01 g [0.055 lb to 0.075 lb] |
| Package Height | 24,1 mm [0.95 in] |
| Package Width | 17,5 mm [0.69 in] |
| Package Length | 49,3 mm [1.94 in] |
| Comment | CE: 61058-1; UL: E12252; CSA: LR41370; Bottom facing #6 screws and cup washers |
| UNSPSC Code | 39122209 |
| UNSPSC Commodity | 39122209 Snap switches |
| Series Name | BZ/BA/WA/YZ |
