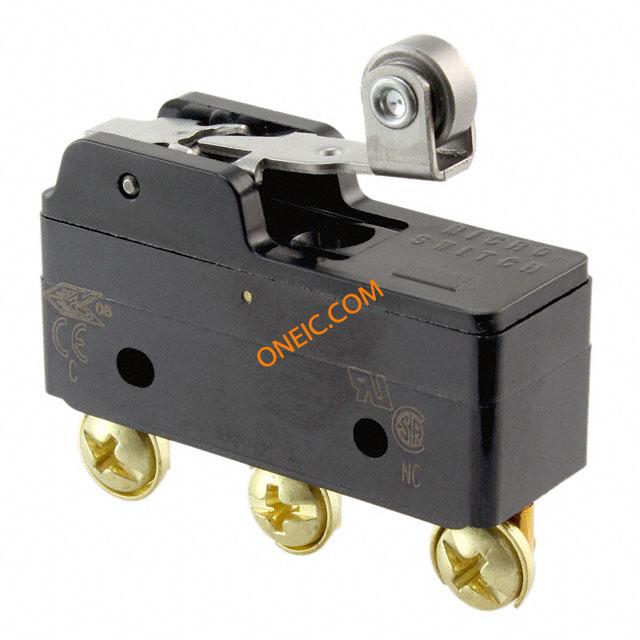

BZ-RW8422-P4
Basic / Snap Action Switches SPDT 15A 250 Vac Roller Lever ACTR
廠商型號:
BZ-RW8422-P4
芯天下內部編號:
159-BZ-RW8422-P4
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches SPDT 15A 250 Vac Roller Lever ACTR
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Termination Style | Screw |
| Series | BZ |
| Type | Basic |
| Actuator Style | Roller Lever |
| Product Length | 49.28 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Pole Throw Configuration | SPDT |
| Mounting | Screw Mount |
| Switch Configuration | N.O./N.C. |
| Product Height | 47.7 |
| Maximum Power Rating | 186.42 |
| Product Depth | 17.45 |
| Base/Housing Material | N/A/General Purpose Phenolic |
| Maximum AC Voltage Rating | 480 |
| Operating Force | 0.56 |
| Terminal Type | Screw |
| Minimum Operating Temperature | -55 |
| Maximum Current Rating | 16@250VAC |
| Actuator Material | Stainless Steel/N/A/N/A |
| Contact Material | Silver |
| Packaging | Bulk |
| Differential Travel | 0.006" (0.15mm) |
| Switch Function | On-Mom |
| Current Rating | 15A (AC) |
| Operating Force, Torque | 56.7gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Operating Position | 1.188" (30.2mm) |
| Overtravel | 0.094" (2.4mm) |
| Operating Temperature | -55°C ~ 85°C |
| Actuator Type | Lever, Roller |
| Standard Package | 5 |
| Ingress Protection | * |
| Pretravel | 0.094" (2.4mm) |
| Release Force | 7gf |
| Mechanical Life | 20,000,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 250 V |
| Operating Force | 0.56 N |
| Contact Form | SPDT |
| Actuator | Roller Lever |
| Switch Type | MICRO SWITCHa?￠ Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| Sealed | No |
| Ampere Rating | 15 A |
| Circuitry | SPDT |
| Termination | Screw |
| Operating Temperature | -55 ?°C to 85 ?°C [-67 ?°F to 185 ?°F] |
| Voltage | 250 Vac |
| Actuator Length | 26,7 mm [1.05 in] |
| Contact Type | Silver |
| Operating Force (OF) | 0,56 N [2.0 oz] max. |
| Overtravel (OT) | 2,39 mm [0.094 in] min. |
| Differential Travel (DT) | 0,025 mm [0.001 in] max. |
| Material | Plastic |
| Housing Material | General Purpose Phenolic |
| Agency Approvals and Standards | UL, CSA, ENEC |
| Mounting Screw Size | 3,53 mm [0.139 in] |
| Mounting Centers | 25,4 mm [1 in] |
| Tightening Torque | 0,33 N m [3.0 in lb] |
| Weight | 24,94 g to 34,01 g [0.055 lb to 0.075 lb] |
| Package Height | 24,1 mm [0.95 in] |
| Package Width | 17,5 mm [0.69 in] |
| Package Length | 49,3 mm [1.94 in] |
| Comment | CE: 61058-1; UL: E12252; CSA: LR41370; Left-side facing #8 screw with cupwasher integral construction |
| UNSPSC Code | 39122209 |
| UNSPSC Commodity | 39122209 Snap switches |
| Series Name | BZ/BA/WA/YZ |
