CSTLS10M0G53-B0
CER RESONATOR 10.0MHZ
廠商型號:
CSTLS10M0G53-B0
芯天下內部編號:
233-CSTLS10M0G53-B0
生產廠商:
murata electronics
描述:
CER RESONATOR 10.0MHZ
產品類別:
Logic and Timing|Crystals

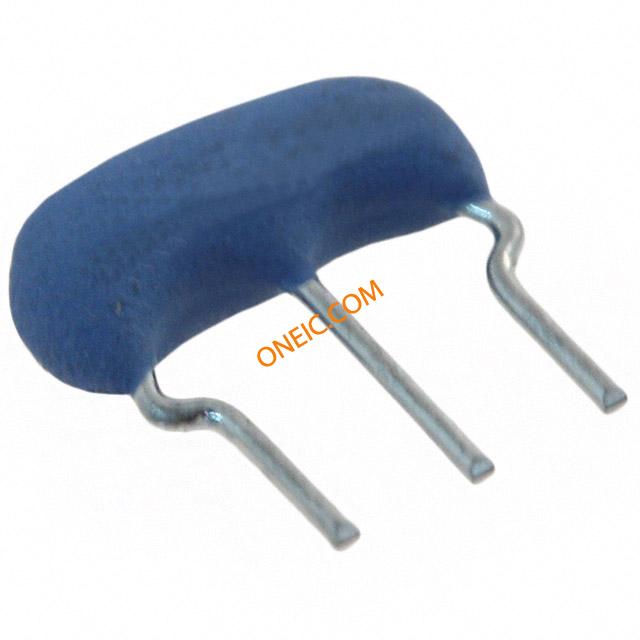

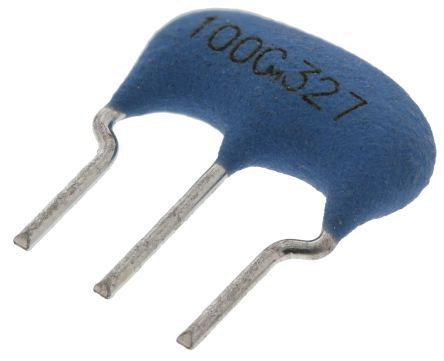

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Frequency Stability | ±0.2% |
| Type | Ceramic Resonator |
| EU RoHS | Compliant |
| Frequency Tolerance | ±0.5% |
| Resonance Frequency | 10 |
| Mounting | Through Hole |
| Resonance Resistance | 25 |
| Packaging | Bulk |
| Frequency Aging | ±0.2%/Year |
| Package Width | 3 |
| Load Capacitance | 15 |
| PCB | 3 |
| Package Length | 8 |
| Minimum Operating Temperature | -20 |
| Maximum Operating Temperature | 80 |
| Pin Count | 3 |
| Unit Pack | 500 |
| MOQ | 500 |
| Industry Aliases | CSTS1000MG03 |
| Subcategory | Resonator |
| Lead Time | 42 Days |
| Features | Built in Capacitor |
| Mounting Type | Through Hole |
| Height | 0.236" (6.00mm) |
| Size / Dimension | 0.315" L x 0.118" W (8.00mm x 3.00mm) |
| Capacitance | 15pF |
| Operating Temperature | -20°C ~ 80°C |
| Frequency | 10MHz |
| Standard Package | 500 |
| Impedance | 25 Ohm |
| Package/Case | Radial - 3 Lead, 2.50mm Pitch |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 500 |
| Product Category | Resonators |
| Dimensions | 3 mm W x 8 mm L x 5.5 mm H |
| Operating Temperature Range | - 20 C to + 80 C |
| Series | CSTLS |
| Termination Style | Through Hole |
| Tolerance | 0.5 % |
| Tradename | CERALOCK |
| RoHS | RoHS Compliant |
| 電容 | 15pF |
| 頻率 | 10MHz |
| 頻率穩定度 | ±0.2%; ±0.2% |
| 操作溫度 | -20°C ~ 80°C |
| 高度 | 0.236" (6.00mm) |
| 特性 | Built in Capacitor |
| 阻抗 | 25 Ohm |
| 封裝/外殼 | Radial - 3 Lead, 2.50mm Pitch |
| 大小/尺寸 | 0.315" L x 0.118" W (8.00mm x 3.00mm) |
| 類型 | Ceramic |
| 系列 | CERALOCK? |
| 頻率容差 | ±0.5% |
| 振蕩模式 | 剪切 |
| 諧振頻率 | 10MHz |
| 最高工作溫度 | +80 °C |
| 安裝類型 | 通孔 |
| 負載電容值 | 15pF |
| 最低工作溫度 | -20 °C |
| 諧振電阻值 | 25Ω |
| 寬度 | 3mm |
| 封裝類型 | CSTLS |
| 引腳數目 | 3 |
| 長度 | 8mm |
| Board Level Components | Y |
| 尺寸 | 8 x 3 x 5.5mm |
