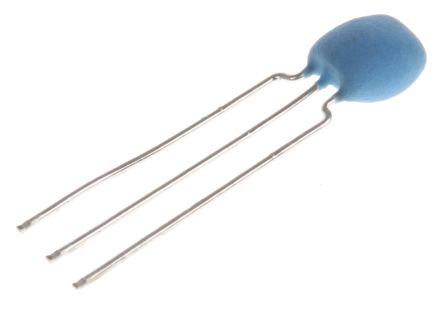

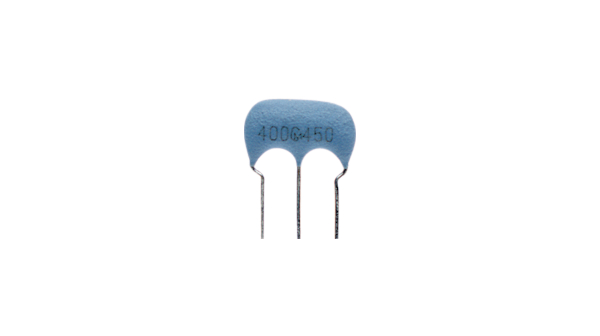

CSTLS20M0X53-B0
IC RESONATOR 20MHZ 15PF TH BULK
-B0-Side-2.jpg)
廠商型號:
CSTLS20M0X53-B0
芯天下內部編號:
233-CSTLS20M0X53-B0
生產廠商:
murata electronics
描述:
IC RESONATOR 20MHZ 15PF TH BULK
產品類別:
Logic and Timing|Crystals
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Standard Frequency | 20 MHz |
| Frequency Tolerance | ±0.5 % |
| Load Capacitance | 15 pF |
| Type | Resonator |
| Maximum Operating Temperature | 80 °C |
| Mode of Oscillation | 3rd Overtone |
| Minimum Operating Temperature | -20 °C |
| Standard Package | Bulk |
| Subcategory | Resonator |
| Packaging | Bulk |
| Lead Time | 84 Days |
| Frequency Stability | ±0.2% |
| Features | Built in Capacitor |
| Mounting Type | Through Hole |
| Height | 0.256" (6.50mm) |
| Size / Dimension | 0.217" L x 0.118" W (5.50mm x 3.00mm) |
| Capacitance | 15pF |
| Operating Temperature | -20°C ~ 80°C |
| Frequency | 20MHz |
| Impedance | 50 Ohm |
| Package/Case | Radial - 3 Lead, 2.50mm Pitch |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5.5 x 3 x 5.5mm |
| Frequency Ageing | ±0.2 %/yr |
| Length | 5.5mm |
| Pin Count | 3 |
| Resonance Frequency | 20MHz |
| Resonance Resistance | 50Ω |
| Width | 3mm |
| Factory Pack Quantity | 500 |
| Product Category | Resonators |
| Operating Temperature Range | - 20 C to + 80 C |
| Series | CSTLS |
| Termination Style | Through Hole |
| Tolerance | 0.5 % |
| Tradename | CERALOCK |
| RoHS | RoHS Compliant By Exemption |
| Frequency tolerance | ±0.5 % |
| Description | C1/C2=15 pF |
| Package | Radial |
| Construction form | 3 pin |
| Operating temperature | -20...+80 °C |
| Temperature tolerance | ±0.2 % |
| 振蕩模式 | 三階泛音 |
| 頻率老化 | ±0.2 %/yr |
| 頻率穩定性 | ±0.2% |
| 最高工作溫度 | +80 °C |
| 諧振頻率 | 20MHz |
| 負載電容值 | 15pF |
| 安裝類型 | 通孔 |
| 最低工作溫度 | -20 °C |
| 高度 | 5.5mm |
| 諧振電阻值 | 50Ω |
| 長度 | 5.5mm |
| 寬度 | 3mm |
| 尺寸 | 5.5 x 3 x 5.5mm |
| 引腳數目 | 3 |
| Board Level Components | Y |
| 頻率容差 | ±0.5% |
| Washable | YES |
| Pin length | 3.5 mm |
| Loadcapacitance | 15 pF |
| Mounting | THT |
| Level | TTL |
| Toler pos % | 0.5 % |
| T(A)max | 80 °C |
| Tolerance neg | 0.5 % |
| T(A)min | -20 °C |
| Technics | CERAMIC |
| Pitch | 2.5 mm |
| Automotive | NO |
| Thick | 3.5 mm |
| Pins/Pads | 3 |
| Leadfree Defin | RoHS-conform |
