CSTLS16M0X55Z-A0
CER RESONATOR
廠商型號:
CSTLS16M0X55Z-A0
芯天下內部編號:
233-CSTLS16M0X55Z-A0
生產廠商:
murata electronics
描述:
CER RESONATOR
產品類別:
Logic and Timing|Crystals

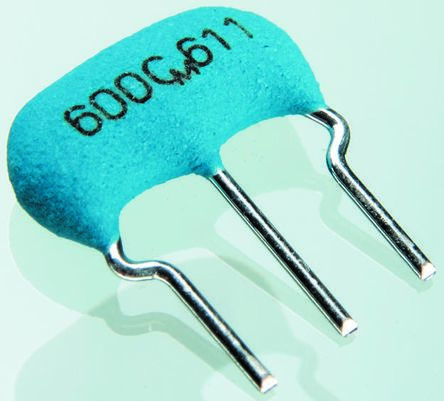

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Unit Pack | 2000 |
| MOQ | 2000 |
| Subcategory | Not Specified |
| Lead Time | 84 Days |
| Frequency Stability | ±0.2% |
| Frequency Tolerance | ±5% |
| Features | Built in Capacitor |
| Mounting Type | Through Hole |
| Packaging | Tape & Box (TB) |
| Height | 0.256" (6.50mm) |
| Size / Dimension | 0.217" L x 0.118" W (5.50mm x 3.00mm) |
| Capacitance | 30pF |
| Operating Temperature | -20°C ~ 80°C |
| Frequency | 16MHz |
| Standard Package | 2,000 |
| Impedance | 50 Ohm |
| Type | Ceramic |
| Package/Case | Radial - 3 Lead, 2.50mm Pitch |
| rohs | Lead free / RoHS Compliant |
| Other Names | 490-6001-1 |
| Factory Pack Quantity | 2000 |
| Product Category | Resonators |
| Dimensions | 3.5 mm W x 5.5 mm L x 6.5 mm H |
| Operating Temperature Range | - 20 C to + 80 C |
| Series | CSTLS |
| Termination Style | Through Hole |
| Tolerance | 0.5 % |
| Tradename | CERALOCK |
| RoHS | RoHS Compliant |
| 振蕩模式 | 擴展器 |
| 頻率容差 | ±0.5% |
| 諧振頻率 | 16MHz |
| 最高工作溫度 | +80 °C |
| 安裝類型 | 通孔 |
| 負載電容值 | 39pF |
| 高度 | 9mm |
| 最低工作溫度 | -20 °C |
| 寬度 | 3mm |
| 封裝類型 | CSTLS |
| 引腳數目 | 3 |
| 長度 | 8mm |
| 尺寸 | 8 x 3 x 9mm |
