DEBF33A222ZA2B
Cap Ceramic 0.0022uF 1000V F -20% to 80% (6 X 4mm) Radial 5mm 85°C Bulk
廠商型號:
DEBF33A222ZA2B
芯天下內部編號:
233-DEBF33A222ZA2B
生產廠商:
murata electronics
描述:
Cap Ceramic 0.0022uF 1000V F -20% to 80% (6 X 4mm) Radial 5mm 85°C Bulk
產品類別:
Capacitor|Capacitor Ceramic Singlelayer

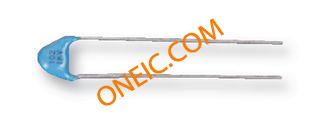

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 6(Max) X 4(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.0022 uF |
| Voltage | 1000 Vdc |
| Tolerance | -20 to 80 % |
| Dielectric | F |
| Lead Pitch For Radial | 5 mm |

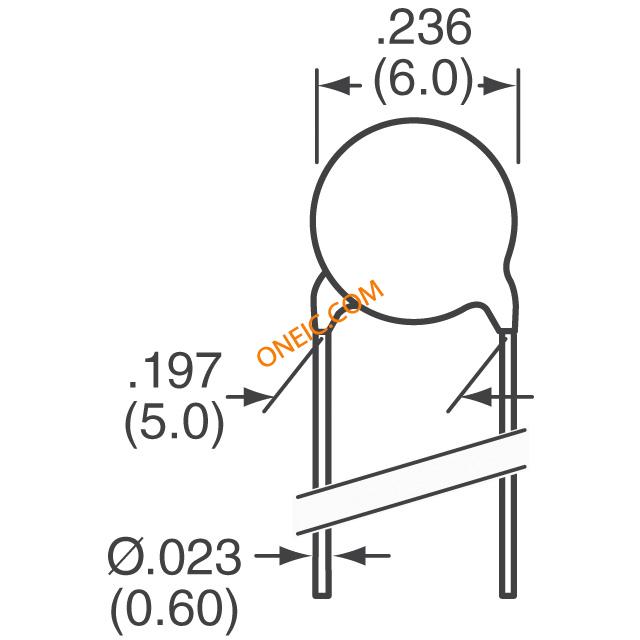

| Product Diameter | 6(Max) mm |
| Operating Temperature | -25 to 85 °C |
| Termination Style | Radial |

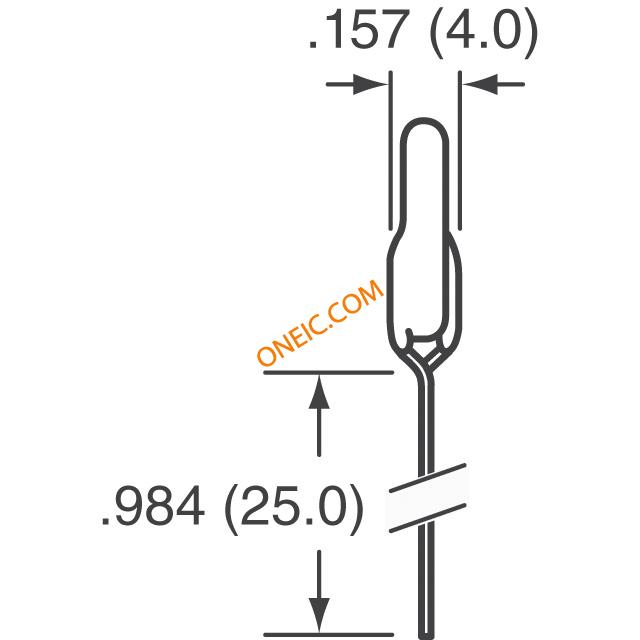

| Product Depth | 4(Max) mm |
| Standard Package | Bulk |
| Product Category | Ceramic Disc Capacitors |
| RoHS | RoHS Compliant |
| Capacitance | 2200 pF |
| Voltage Rating | 1 kV |
| Operating Temperature Range | - 25 C to + 85 C |
| Product | High Voltage Ceramic Disc Capacitors |
| Capacitance - nF | 2.2 nF |
| Capacitance - uF | 0.0022 uF |
| Case Diameter | 6 mm |
| Lead Spacing | 5 mm |
| Packaging | Bulk |
| Series | DEB |
| Factory Pack Quantity | 3000 |
| Temperature Coefficient / Code | F |
| Lead Diameter | 0.6 |
| Type | Ceramic Disc |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Diameter | 6(Max) |
| Product Depth | 4(Max) |
| Seated Plane Height | 9(Max) |
| Lead Pitch For Radial | 5 |
| Matchcode | KE2,2N5,0F1K0Z |
| Style | RADIAL |
| Electrodes | ES |
| T(A) min | -25°C |
| Leadfree Defin. | RoHS-conform |
| Unit Pack | 500 |
| Standard Leadtime | 24 weeks |
| MOQ | 500 |
| C(N) | 2,2nF |
| T(A) max | +85°C |
| Case size | 6 |
| Pitch | 5mm |
| Automotive | NO |
| V(N) | 1000V |
| Industry Aliases | DE0605F222Z1K |
| Subcategory | Capacitor Ceramic Singlelayer |
| Lead Time | 70 Days |
| Mounting Type | Through Hole |
| Voltage - Rated | 1000V (1kV) |
| Lead Style | Flat Bent |
| Temperature Coefficient | F |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Applications | General Purpose |
| Other Names | 490-4251 |
| Features | High Voltage |
| rohs | Lead free / RoHS Compliant |
| Depth | 4mm |
| Length | 6mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Tolerance Minus | -20% |
| Tolerance Plus | +80% |
| Product Range | :MURATA - DEB Series |
| Capacitance Tolerance | :+80%, -20% |
| Dielectric Characteristic | :F |
| Capacitor Terminals | :Radial Leaded |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Body Diameter | :6mm |
| Insulation Resistance | :10000Mohm |
| Lead Diameter | :0.65mm |
| Lead Length | :25mm |
| No. of Pins | :2 |
| Proof Voltage | :2000V |
| Temp Coeff Tolerance + | :30% |
| Temp Coeff Tolerance - | :-80% |
| Temperature Coeff. + | :350ppm/°C |
| Temperature Coeff. - | :-1000ppm/°C |
| Tolerance + | :80% |
| Tolerance - | :20% |
| Voltage Rating V DC | :1000V |
| Weight (kg) | 0.024 |
| Tariff No. | 85322300 |
