DEBF33D103ZB3B
Cap Ceramic 0.01uF 2000V F -20% to 80% (12 X 5mm) Radial 7.5mm 85°C Bulk
廠商型號:
DEBF33D103ZB3B
芯天下內部編號:
233-DEBF33D103ZB3B
生產廠商:
murata electronics
描述:
Cap Ceramic 0.01uF 2000V F -20% to 80% (12 X 5mm) Radial 7.5mm 85°C Bulk
產品類別:
Capacitor|Capacitor Ceramic Singlelayer

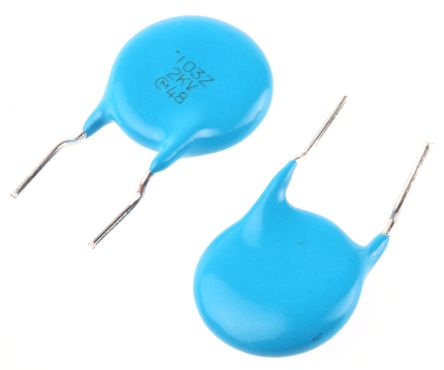

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 12(Max) X 5(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.01 uF |
| Voltage | 2000 Vdc |
| Tolerance | -20 to 80 % |
| Dielectric | F |
| Lead Pitch For Radial | 7.5 mm |
| Product Diameter | 12(Max) mm |
| Operating Temperature | -25 to 85 °C |
| Termination Style | Radial |
| Product Depth | 5(Max) mm |
| Standard Package | Bulk |
| Product Category | Ceramic Disc Capacitors |
| RoHS | RoHS Compliant |
| Capacitance | 0.01 uF |
| Voltage Rating | 2 kV |
| Operating Temperature Range | - 25 C to + 85 C |
| Product | High Voltage Ceramic Disc Capacitors |
| Capacitance - nF | 10 nF |
| Capacitance - pF | 10000 pF |
| Case Diameter | 12 mm |
| Lead Spacing | 7.5 mm |
| Packaging | Bulk |
| Series | DEB |
| Factory Pack Quantity | 3000 |
| Temperature Coefficient / Code | F |
| Lead Diameter | 0.6 |
| Type | Ceramic Disc |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Diameter | 12(Max) |
| Product Depth | 5(Max) |
| Seated Plane Height | 15(Max) |
| Lead Pitch For Radial | 7.5 |
| Subcategory | Capacitor Ceramic Singlelayer |
| Lead Time | 70 Days |
| Mounting Type | Through Hole |
| Voltage - Rated | 2000V (2kV) |
| Features | High Voltage |
| Temperature Coefficient | F |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Applications | General Purpose |
| Package / Case | Radial, Disc |
| Lead Style | Straight |
| rohs | Lead free / RoHS Compliant |
| Depth | 5mm |
| Length | 12mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Tolerance Minus | -20% |
| Tolerance Plus | +80% |
| 系列 | DEB |
| 電壓 | 2000 V 直流 |
| 容差 | -20 → +80% |
| 最高工作溫度 | +85°C |
| 容差 正 | +80% |
| 端子類型 | 通孔安裝 |
| 安裝類型 | 通孔 |
| 電容值 | 10 nF |
| 最低工作溫度 | -25°C |
| 溫度系數 | -80 → +30% |
| 長度 | 12mm |
| 容差 負 | -20% |
| 深度 | 5mm |
| Board Level Components | Y |
| 電介質 | F |
| Style | RADIAL |
| Electrodes | ES |
| Diameter/width | 12 mm |
| T(A) min | -25 °C |
| Automotive | NO |
| C(N) | 10n F |
| Design / type | VERT CRIMP |
| Wire length | 5 mm |
| T(A) max | +85 °C |
| Pitch | 7.5 mm |
| V(N) | 2000 V |
| Leadfree Defin | RoHS-conform |
