EEE-FK1C100AR

Cap Aluminum 10uF 16V 20% (4 X 5.8mm) SMD 90mA 2000h 105°C T/R

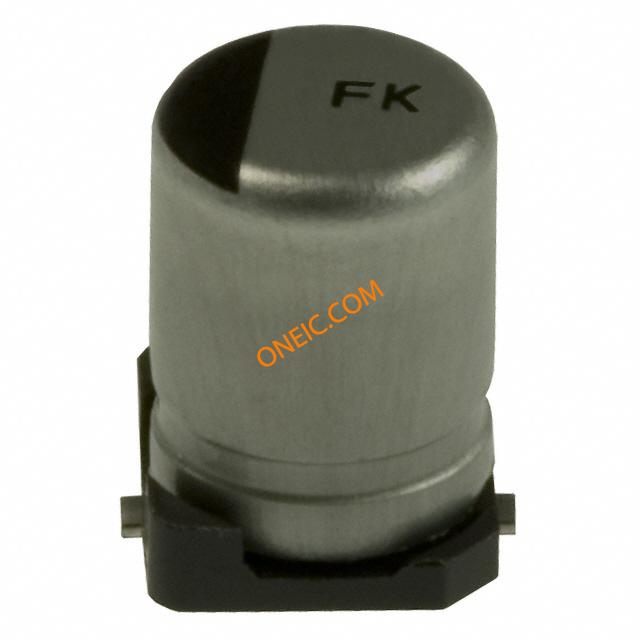

Thumbnail EEE-FK1C100AR Thumbnail EEE-FK1C100AR Thumbnail EEE-FK1C100AR Thumbnail EEE-FK1C100AR
廠商型號: EEE-FK1C100AR
芯天下內部編號: 282-EEE-FK1C100AR
生產廠商:
panasonic panasonic
描述: Cap Aluminum 10uF 16V 20% (4 X 5.8mm) SMD 90mA 2000h 105°C T/R
產品類別: Capacitor|Capacitor Aluminum
客戶編號:
規格書: 查看PDF

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Mounting Surface Mount
Capacitance Value 10 uF
Voltage 16 Vdc
Tolerance 20 %
Ripple Current 90 mA
Lifetime 2000 h
Product Diameter 4 mm
Product Height 5.8 mm
Operating Temperature -55 to 105 °C
Construction Cylindrical
Standard Package Tape & Reel
RoHS RoHS Compliant
Capacitance 10 uF
Voltage Rating 16 V
Operating Temperature Range - 55 C to + 105 C

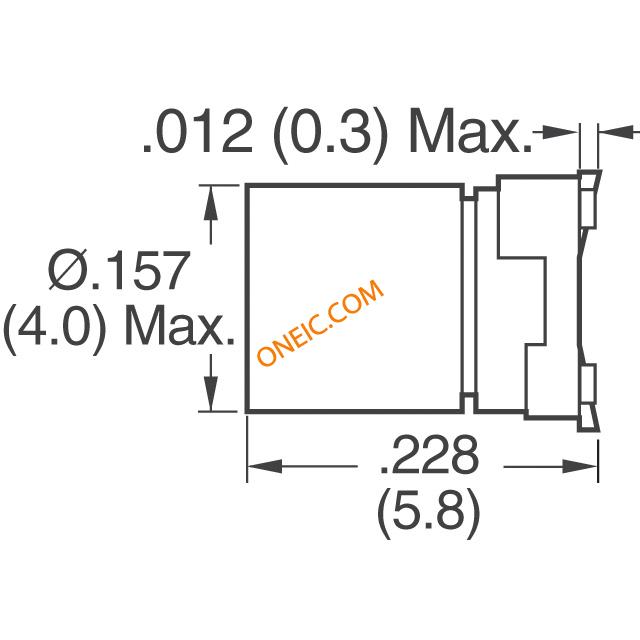

Dimensions 4 mm Dia. x 5.8 mm L
Product High Temp Electrolytic Capacitors
Leakage Current 3 uA
Packaging Reel
Series FK
Factory Pack Quantity 2000
Termination Style SMD/SMT
EU RoHS Compliant
Maximum Operating Temperature 105
Leakage Current 1.6@2Min
Lifetime 2000
Product Height 5.8
Ripple Current 90
Type Electrolytic
Product Diameter 4
rohs Lead free / RoHS Compliant
Case Diameter 4 mm
ESR 1.35 Ohms
Case Height 5.8 mm
Voltage Rating DC 16 V
Case Length 5.8 mm
Load Life 2000 h
Operating Temp Range -55C to 105C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) Not Required mm
Tolerance (+ or -) 20%
DCL 3 uA
Lead Spacing (nom) Not Required mm
Mounting Style Surface Mount
Seated Plane Height Not Required mm
Size (mm) 4 X 5.8
Product Length (mm) Not Required mm
Product Depth (mm) Not Required mm
Product Height (mm) 5.8 mm
Product Diameter (mm) 4 mm
Brand/Series FK Series
Case Code B
Case Size 4 mm Dia. x 5.8 mm L
Current, Ripple 0.09 A
Life 2000 Hours
Material, Element Aluminum Electrolytic
Temperature Range –55 to 105 °C
Termination SMT
Voltage, Rating 16 VDC
