EEE-FK1C101P

Cap Aluminum 100uF 16V 20% (6.3 X 5.8mm) SMD 240mA 2000 hr 105°C T/R

Thumbnail EEE-FK1C101P Thumbnail EEE-FK1C101P Thumbnail EEE-FK1C101P Thumbnail EEE-FK1C101P
廠商型號: EEE-FK1C101P
芯天下內部編號: 282-EEE-FK1C101P
生產廠商:
panasonic panasonic
描述: Cap Aluminum 100uF 16V 20% (6.3 X 5.8mm) SMD 240mA 2000 hr 105°C T/R
產品類別: Capacitor|Capacitor Aluminum
客戶編號:
規格書: 查看PDF

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Mounting Surface Mount
Capacitance Value 100 uF
Voltage 16 Vdc
Tolerance 20 %
Ripple Current 240 mA
Lifetime 2000 h
Product Diameter 6.3 mm
Product Height 5.8 mm
Operating Temperature -55 to 105 °C
Type Cylindrical
Standard Package Cut Tape
Standard Package Tape & Reel
Product Category Aluminum Electrolytic Capacitors - SMD
RoHS RoHS Compliant
Capacitance 100 uF
Voltage Rating 16 V
Operating Temperature Range - 55 C to + 105 C

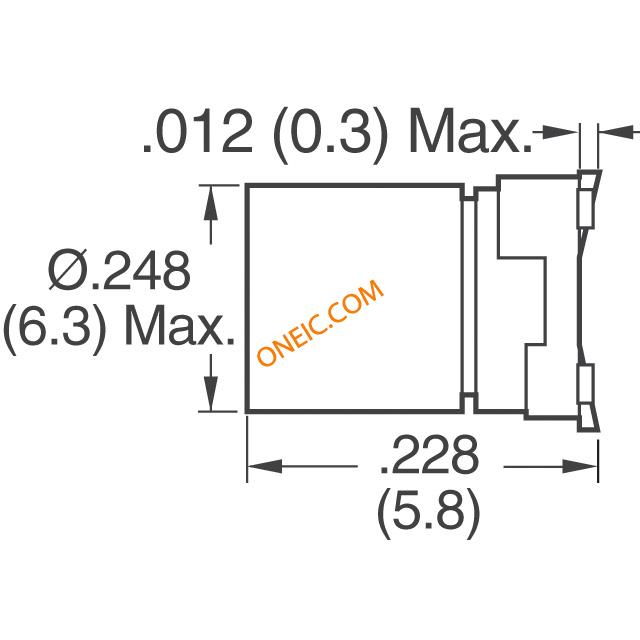

Dimensions 6.3 mm Dia. x 5.8 mm L
Product Aluminum Electrolytic Capacitors
Packaging Reel
Factory Pack Quantity 1000
Termination Style SMD/SMT
EU RoHS Compliant
Maximum Operating Temperature 105
Leakage Current 16@2Min
Equivalent Series Resistance Type Low
Lifetime 2000
Product Height 5.8
Construction Cylindrical
Ripple Current 240
Product Diameter 6.3
rohs Lead free / RoHS Compliant
Case Diameter 6.3 mm
ESR 360 mOhms
Series FK
Voltage Rating DC 16 V
Case Height 5.8 mm
Load Life 2000 h
Case Length 5.8 mm
Operating Temp Range -55C to 105C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) Not Required mm
Tolerance (+ or -) 20%
DCL 16@2Min uA
Lead Spacing (nom) Not Required mm
Mounting Style Surface Mount
Product Length (mm) Not Required mm
Product Depth (mm) Not Required mm
Product Height (mm) 5.8 mm
Seated Plane Height Not Required mm
Size (mm) 6.3 X 5.8
Product Diameter (mm) 6.3 mm
Brand/Series FK Series
Case Code D
Case Size 6.3 mm Dia. x 5.8 mm L
Current, Ripple 0.24 A
Life 2000 Hours
Material, Element Aluminum Electrolytic
Temperature Range –55 to 105 °C
Termination SMT
Voltage, Rating 16 VDC
