EEE-FK1C220AR

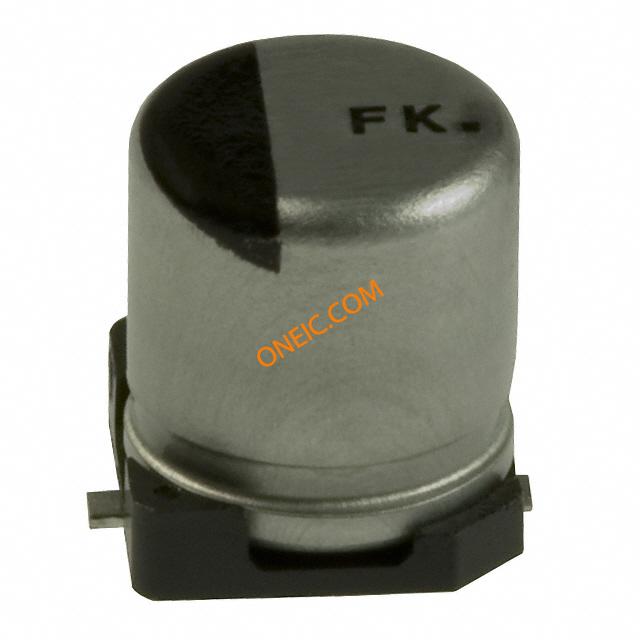

Cap Aluminum 22uF 16V 20% (5 X 5.8mm) SMD 160mA 2000h 105°C T/R

Thumbnail EEE-FK1C220AR Thumbnail EEE-FK1C220AR Thumbnail EEE-FK1C220AR Thumbnail EEE-FK1C220AR
廠商型號: EEE-FK1C220AR
芯天下內部編號: 282-EEE-FK1C220AR
生產廠商:
panasonic panasonic
描述: Cap Aluminum 22uF 16V 20% (5 X 5.8mm) SMD 160mA 2000h 105°C T/R
產品類別: Capacitor|Capacitor Aluminum
客戶編號:
規格書: 查看PDF

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Mounting Surface Mount
Capacitance Value 22 uF
Voltage 16 Vdc
Tolerance 20 %
Ripple Current 160 mA
Lifetime 2000 h
Product Diameter 5 mm
Product Height 5.8 mm
Operating Temperature -55 to 105 °C
Construction Cylindrical
Standard Package Tape & Reel
RoHS RoHS Compliant
Capacitance 22 uF
Voltage Rating 16 V
Operating Temperature Range - 55 C to + 105 C

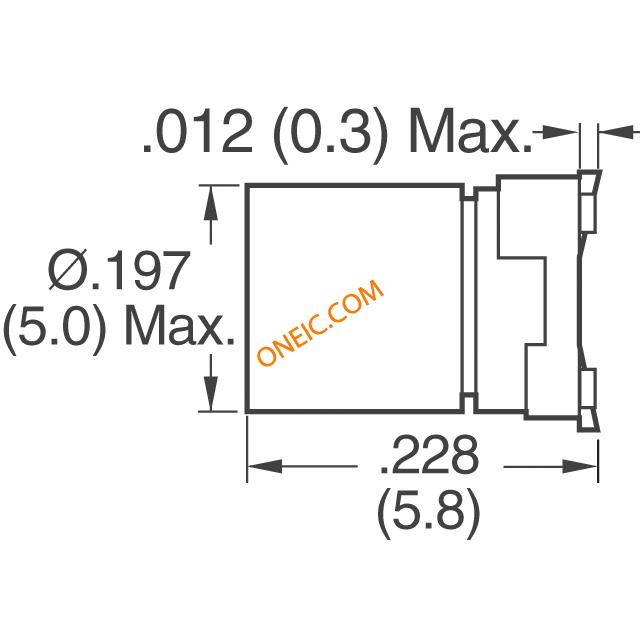

Dimensions 5 mm Dia. x 5.8 mm L
Product High Temp Electrolytic Capacitors
Leakage Current 3.5 uA
Packaging Reel
Series FK
Factory Pack Quantity 1000
Termination Style SMD/SMT
EU RoHS Compliant
Maximum Operating Temperature 105
Leakage Current 3@2Min
Lifetime 2000
Product Height 5.8
Ripple Current 160
Type Electrolytic
Product Diameter 5
rohs Lead free / RoHS Compliant
Case Diameter 5 mm
ESR 700 mOhms
Case Height 5.8 mm
Voltage Rating DC 16 V
Case Length 5.8 mm
Load Life 2000 h
Operating Temp Range -55C to 105C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) Not Required mm
Tolerance (+ or -) 20%
DCL 3@2Min uA
Lead Spacing (nom) Not Required mm
Mounting Style Surface Mount
Product Length (mm) Not Required mm
Product Depth (mm) Not Required mm
Product Height (mm) 5.8 mm
Seated Plane Height Not Required mm
Size (mm) 5 X 5.8
Product Diameter (mm) 5 mm
Brand/Series FK Series
Case Code C
Case Size 5 mm Dia. x 5.8 mm L
Current, Ripple 0.16 A
Life 2000 Hours
Material, Element Aluminum Electrolytic
Temperature Range –55 to 105 °C
Termination SMT
Voltage, Rating 16 VDC
