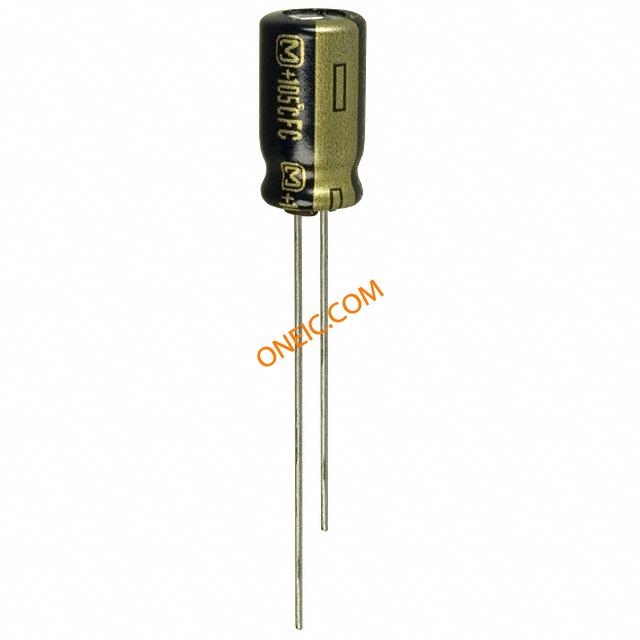

EEU-FC2A100
Cap Aluminum 10uF 100V 20% Radial 105°C Bulk
.jpg)
廠商型號:
EEU-FC2A100
芯天下內部編號:
282-EEU-FC2A100
生產廠商:
panasonic
描述:
Cap Aluminum 10uF 100V 20% Radial 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 10 uF |
| Voltage | 100 Vdc |
| Tolerance | 20 % |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| RoHS | RoHS Compliant |
| Capacitance | 10 uF |
| Voltage Rating | 100 V |
| Operating Temperature Range | - 55 C to + 105 C |

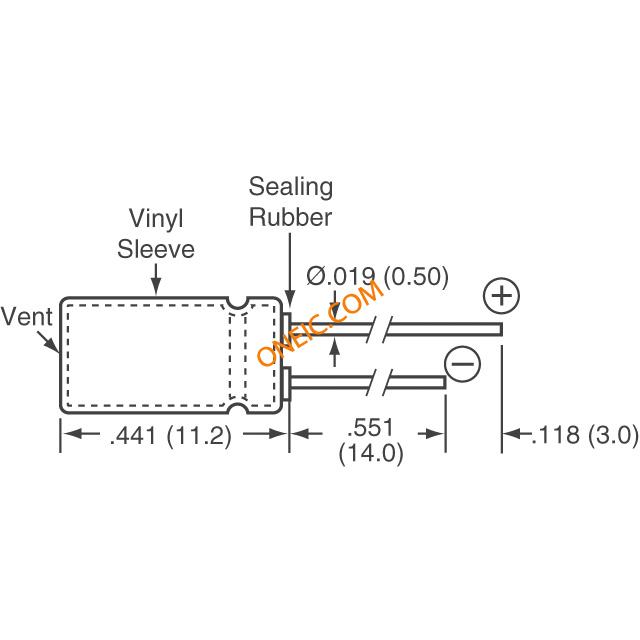

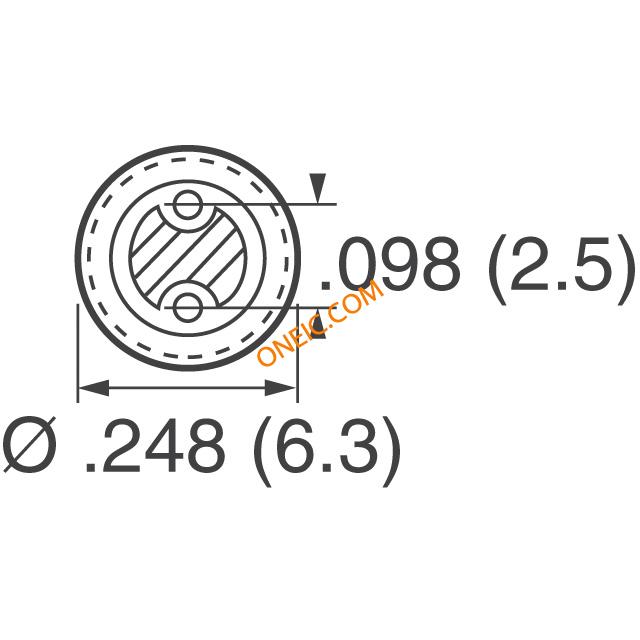

| Case Diameter | 6.3 mm |
| Case Length | 11 mm |
| Lead Spacing | 2.5 mm |
| Product | High Temp Electrolytic Capacitors |
| Packaging | Bulk |
| Series | FC |
| Factory Pack Quantity | 200 |
| メーカ | Panasonic |
| 靜電容量 | 10 uF |
| 公差 | 20 % |
| 定格電圧 | 100 V |
| 動作溫度範囲 | - 55 C to + 105 C |
| 末端様式 | Radial |
| ケースの直徑 | 6.3 mm |
| ケースの長さ | 11 mm |
| リード間隔 | 2.5 mm |
| 製品 | High Temp Electrolytic Capacitors |
| パッケージ化 | Bulk |
| シリーズ | FC |
| 工場パックの數量 | 200 |
| rohs | Lead free / RoHS Compliant |
| Ripple Current | 114 mA |
| Dimensions | 6.3 mm Dia. x 11 mm L |
| Load Life | 1000 h |
| Type | Radial Lead Type |
| ESR | 1.8 Ohms |
| Product Range | :PANASONIC - FC Series |
| Capacitance Tolerance | :± 20% |
| Diameter | :6.3mm |
| Height | :11.2mm |
| Capacitor Terminals | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85322200 |
| Brand/Series | FC Series |
| Case Size | 6.3 mm Dia. x 11 mm L |
| Material, Element | Aluminum Electrolytic |
| Temperature Range | –55 to 105 |
| Termination | Radial |
| Voltage, Rating | 100 VDC |
