EEU-FC2A151
Cap Aluminum 150uF 100V 20% (12.5 X 25mm) Radial 5mm 807mA 5000 hr 105°C Bulk
.jpg)
廠商型號:
EEU-FC2A151
芯天下內部編號:
282-EEU-FC2A151
生產廠商:
panasonic
描述:
Cap Aluminum 150uF 100V 20% (12.5 X 25mm) Radial 5mm 807mA 5000 hr 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum

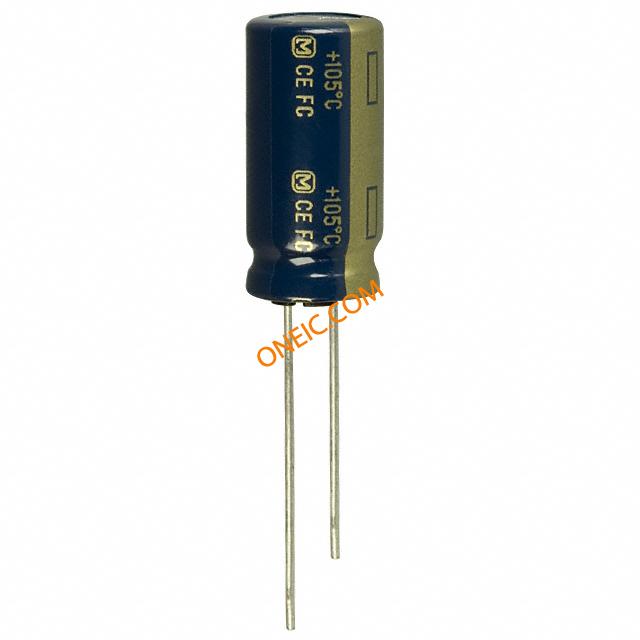

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 150 uF |
| Voltage | 100 Vdc |
| Tolerance | 20 % |
| Ripple Current | 807 mA |
| Lifetime | 5000 h |
| Product Diameter | 12.5 mm |
| Product Height | 25 mm |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| RoHS | RoHS Compliant |
| Capacitance | 150 uF |
| Voltage Rating | 100 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Case Diameter | 12.5 mm |
| Case Length | 25 mm |
| Lead Spacing | 5 mm |
| Product | General Purpose Electrolytic Capacitors |
| Packaging | Bulk |
| Dissipation Factor DF | 0.07 |
| Load Life | 5000 hr |
| Series | FC |
| Factory Pack Quantity | 200 |
| Lead Diameter | 0.6 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 150@2Min |
| Lifetime | 5000 |
| Product Height | 25 |
| Lead Pitch For Radial | 5 |
| Ripple Current | 807 |
| Type | Electrolytic |
| Product Diameter | 12.5 |
| rohs | Lead free / RoHS Compliant |

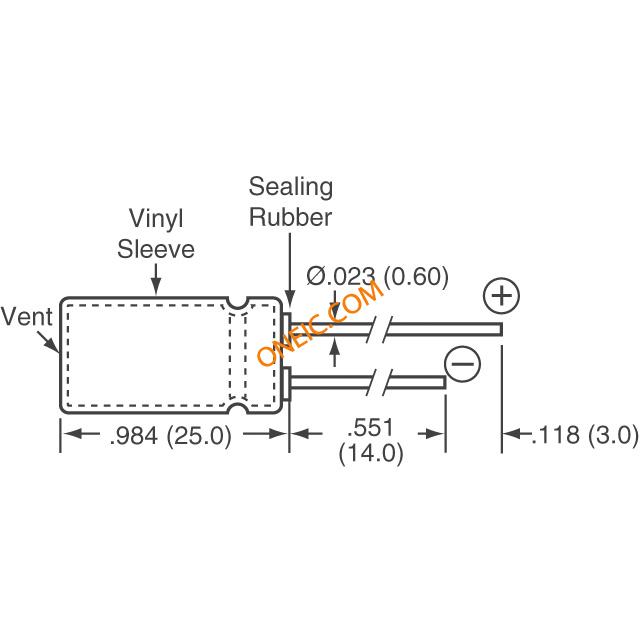

| Dimensions | 12.5 mm Dia. x 25 mm L |
| ESR | 110 mOhms |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.6 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 150@2Min uA |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 25 mm |
| Size (mm) | 12.5 X 25 |
| Product Diameter (mm) | 12.5 mm |
| Product Range | :PANASONIC - FC Series |
| Capacitance Tolerance | :± 20% |
| Diameter | :12.5mm |
| Height | :25mm |
| Capacitor Terminals | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85322200 |
| Brand/Series | FC Series |
| Case Size | 12.5 mm Dia. x 25 mm L |
| Current, Ripple | 0.807 A |
| Diameter, Lead | 0.6 mm |
| Life | 5000 Hours |
| Material, Element | Aluminum Electrolytic |
| Temperature Range | –55 to 105 °C |
| Termination | Radial |
| Voltage, Rating | 100 VDC |
