EEU-FC2A101

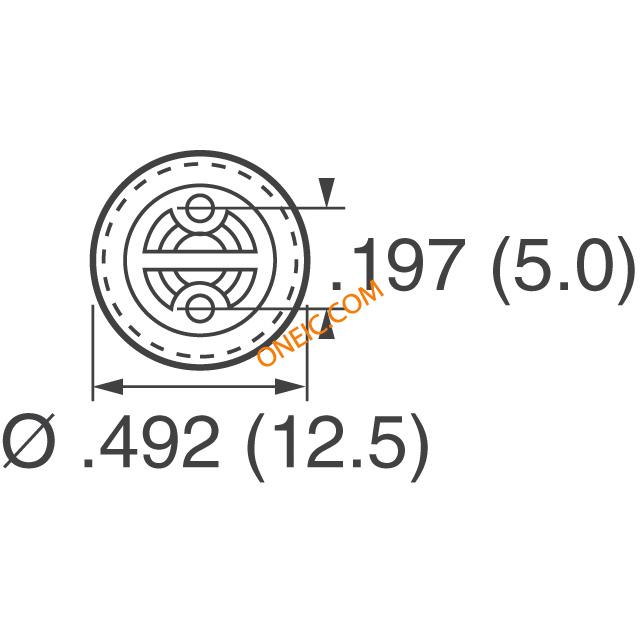

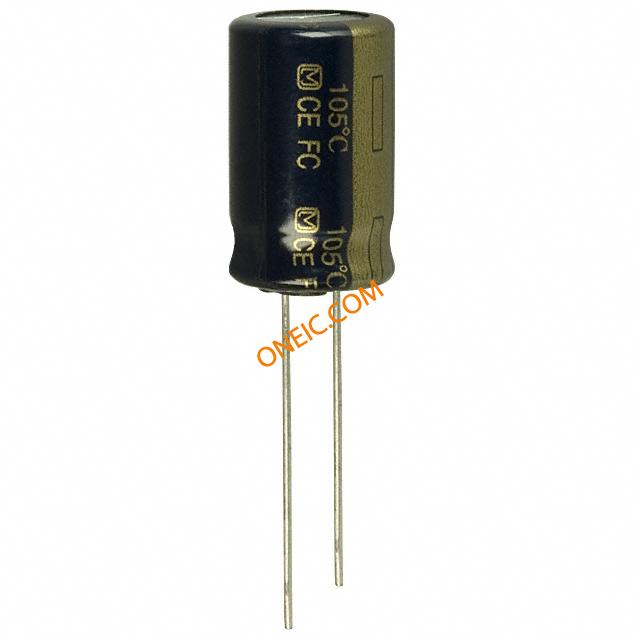

Cap Aluminum 100uF 100V 20% (12.5 X 20mm) Radial 5mm 671mA 5000h 105°C Bulk

Thumbnail EEU-FC2A101 Thumbnail EEU-FC2A101 Thumbnail EEU-FC2A101 Thumbnail EEU-FC2A101 Thumbnail EEU-FC2A101
廠商型號: EEU-FC2A101
芯天下內部編號: 282-EEU-FC2A101
生產廠商:
panasonic panasonic
描述: Cap Aluminum 100uF 100V 20% (12.5 X 20mm) Radial 5mm 671mA 5000h 105°C Bulk
產品類別: Capacitor|Capacitor Aluminum
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Mounting Through Hole
Capacitance Value 100 uF
Voltage 100 Vdc
Tolerance 20 %
Ripple Current 671 mA
Lifetime 5000 h
Product Diameter 12.5 mm
Product Height 20 mm
Lead Pitch For Radial 5 mm
Operating Temperature -55 to 105 °C
Termination Style Radial
Standard Package Bulk
Product Category Aluminum Electrolytic Capacitors - Leaded
RoHS RoHS Compliant
Capacitance 100 uF
Voltage Rating 100 V
Operating Temperature Range - 55 C to + 105 C
Case Diameter 12.5 mm
Case Length 20 mm
Lead Spacing 5 mm
Product High Temp Electrolytic Capacitors
Packaging Bulk
Series FC
Factory Pack Quantity 200
Lead Diameter 0.6
EU RoHS Compliant
Maximum Operating Temperature 105
Leakage Current 100@2Min
Lifetime 5000
Product Height 20
Lead Pitch For Radial 5
Ripple Current 671
Type Electrolytic
Product Diameter 12.5
rohs Lead free / RoHS Compliant
Dimensions 12.5 mm Dia. x 20 mm L
Load Life 5000 h
ESR 180 mOhms
Operating Temp Range -55C to 105C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) 0.6 mm
Construction Radial
Tolerance (+ or -) 20%
DCL 100 uA
Lead Spacing (nom) 5 mm
Mounting Style Through Hole
Size (mm) 12.5 X 20
Product Length (mm) Not Required mm
Product Depth (mm) Not Required mm
Product Height (mm) 20 mm
Product Diameter (mm) 12.5 mm
Brand/Series FC Series
Case Size 12.5 mm Dia. x 20 mm L
Current, Ripple 0.671 A
Diameter, Lead 0.6 mm
Life 5000 Hours
Material, Element Aluminum Electrolytic
Temperature Range –55 to 105 °C
Termination Radial
Voltage, Rating 100 VDC

相似產品

型號 廠商 描述 操作
EEU-FC2A101B panasonic Cap Aluminum 100uF 100V 20% (12.5 X 20mm) Radial 5mm 671mA 5000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A101L panasonic Cap Aluminum 100uF 100V 20% (10 X 30mm) Radial 5mm 698mA 3000 hr 105°C Bulk 查看詳情
EEU-FC2A100 panasonic Cap Aluminum 10uF 100V 20% Radial 105°C Bulk 查看詳情
EEU-FC2A100B panasonic Cap Aluminum 10uF 100V 20% Radial 105°C Ammo Pack 查看詳情
EEU-FC2A100E Panasonic Electronic Components Aluminum Electrolytic Capacitors - Leaded Al Lytic Cap 105C Radial FC Series 查看詳情
EEU-FC2A100H panasonic Cap Aluminum 10uF 100V 20% Radial 105°C Ammo Pack 查看詳情
EEU-FC2A120 panasonic Cap Aluminum 12uF 100V 20% (6.3 X 11.2mm) Radial 2.5mm 114mA 1000 hr 105°C Bulk 查看詳情
EEU-FC2A120B panasonic Cap Aluminum 12uF 100V 20% (6.3 X 11.2mm) Radial 5mm 114mA 1000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A120H panasonic Cap Aluminum 12uF 100V 20% (6.3 X 11.2mm) Radial 2.5mm 114mA 1000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A121S panasonic Cap Aluminum 120uF 100V 20% (16 X 15mm) Radial 7.5mm 793mA 5000 hr 105°C Bulk 查看詳情
EEU-FC2A121SB panasonic Cap Aluminum 120uF 100V 20% (16 X 15mm) Radial 7.5mm 793mA 5000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A151 panasonic Cap Aluminum 150uF 100V 20% (12.5 X 25mm) Radial 5mm 807mA 5000 hr 105°C Bulk 查看詳情
EEU-FC2A151B panasonic Cap Aluminum 150uF 100V 20% (12.5 X 25mm) Radial 5mm 807mA 5000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A151S panasonic Cap Aluminum 150uF 100V 20% (18 X 15mm) Radial 7.5mm 917mA 5000h 105°C Bulk 查看詳情
EEU-FC2A151SB panasonic Cap Aluminum 150uF 100V 20% (18 X 15mm) Radial 7.5mm 917mA 5000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A180 panasonic Cap Aluminum 18uF 100V 20% (6.3 X 15mm) Radial 2.5mm 155mA 1000 hr 105°C Bulk 查看詳情
EEU-FC2A180B panasonic Cap Aluminum 18uF 100V 20% (6.3 X 15mm) Radial 5mm 155mA 1000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A180H panasonic Cap Aluminum 18uF 100V 20% (6.3 X 15mm) Radial 2.5mm 155mA 1000 hr 105°C Ammo Pack 查看詳情
EEU-FC2A181 panasonic Cap Aluminum 180uF 100V 20% (16 X 20mm) Radial 7.5mm 995mA 5000 hr 105°C Bulk 查看詳情
EEU-FC2A181B panasonic Cap Aluminum 180uF 100V 20% (16 X 20mm) Radial 7.5mm 995mA 5000h 105°C Ammo Pack 查看詳情
