ICE40LP8K-CM121

IC FPGA LP 7680LUTS 1.2V 121CBGA

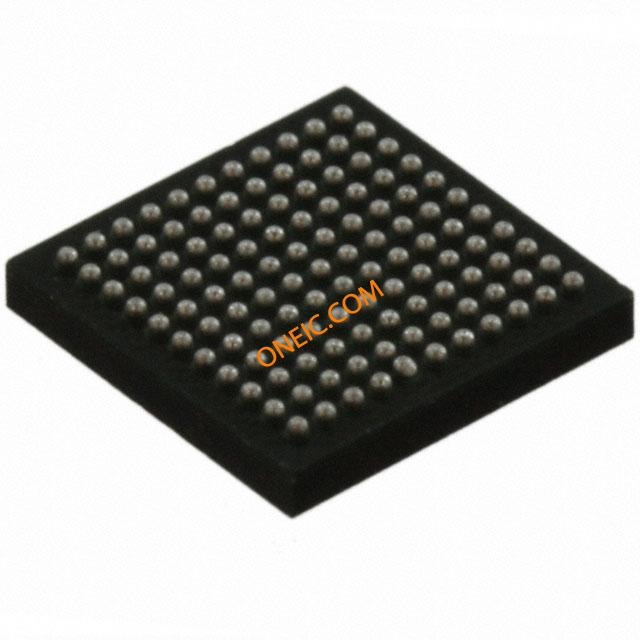

Thumbnail ICE40LP8K-CM121 Thumbnail ICE40LP8K-CM121 Thumbnail ICE40LP8K-CM121
廠商型號: ICE40LP8K-CM121
芯天下內部編號: 224-ICE40LP8K-CM121
生產廠商:
Lattice Semiconductor Corporation Lattice Semiconductor Corporation
描述: IC FPGA LP 7680LUTS 1.2V 121CBGA
產品類別: Integrated Circuits (ICs)|Embedded - FPGAs (Field Programmable Gate Array)|LP
客戶編號:
規格書: 查看PDF

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Number of LABs/CLBs 960
Mounting Type Surface Mount
Number of Logic Elements/Cells 7680
Standard Package 490
Supplier Device Package 121-CSBGA (5x5)
Total RAM Bits 131072
Operating Temperature -40°C ~ 100°C
Voltage - Supply 1.14 V ~ 1.26 V
Number of I /O 93
Package / Case 121-VFBGA, CSBGA
Dimensions 5 x 5 x 0.9mm
Family Name iCE40 LP
Height 0.9mm
Length 5mm
Maximum Operating Supply Voltage 1.26 V
Maximum Operating Temperature +85 °C
Minimum Operating Supply Voltage 1.14 V
Minimum Operating Temperature -40 °C
Number of Logic Cells 7680
Number of Logic Units 960
Number of RAM Bits 128kbit
Number of Registers 7680
Package Type UCBGA
Pin Count 121
Width 5mm
rohs Compliant
Operating Supply Voltage 1.2 V
Factory Pack Quantity 490
Product iCE40 LP
Number of Logic Array Blocks - LABs 960
Series iCE40LP8K-CM
Number of I/Os 93
Maximum Operating Frequency 533 MHz
Packaging Tray
Number of Gates 7680
Number of Logic Elements 7680
M4K Memory 128 kbit
Mounting Style SMD/SMT
Total Memory 128 kbit
RoHS RoHS Compliant
Mounting Surface Mount
Operating Temp Range -40C to 85C
Process Technology 40nm
Operating Temperature (Max) 85C
Operating Temperature (Min) -40C
Operating Temperature Classification Industrial
RAM Bits 131072 b
Programmable Yes
# I/Os (Max) 93
Rad Hardened No
Operating Supply Voltage (Typ) 1.2 V
Operating Supply Voltage (Min) 1.14 V
Operating Supply Voltage (Max) 1.26 V
Standard Pack Qty 490
Brand Lattice
