LMXN1310M4R7CTAS
POWER INDUCTOR 4.7UH 20%
廠商型號:
LMXN1310M4R7CTAS
芯天下內部編號:
10-LMXN1310M4R7CTAS
生產廠商:
AVX Corporation
描述:
POWER INDUCTOR 4.7UH 20%
產品類別:
Inductors, Coils, Chokes|Fixed Inductors|LMXN
客戶編號:
規格書:
查看PDF

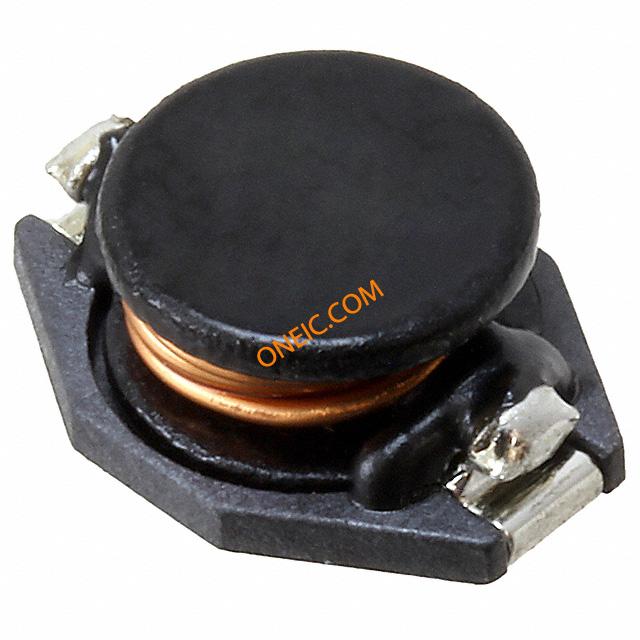

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Tape & Reel (TR) |
| Current Rating | 4.2A |
| DC Resistance (DCR) | 36 mOhm Max |
| Height - Seated (Max) | 0.250" (6.35mm) |
| Type | Wirewound |
| Standard Package | 1,000 |
| Shielding | Unshielded |
| Size / Dimension | 0.560" L x 0.390" W (13.20mm x 9.90mm) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Inductance | 4.7μH |
| Frequency - Test | 100kHz |
| Tolerance | ±20% |
| Other Names | 478-7104-2 |
| Package/Case | Non Standard |
| rohs | Lead free / RoHS Compliant |
| Maximum DC Resistance | 36 mOhms |
| Product | SMD Power Inductors |
| Product Category | Fixed Inductors |
| Dimensions | 9.4 mm W x 12.95 mm L x 3 mm H |
| Operating Temperature Range | - 40 C to + 125 C |
| Maximum DC Current | 4.2 A |
| Series | LMXN |
| Termination Style | SMD/SMT |
| Case Length | 12.95 mm |
| Test Frequency | 100 kHz |
| Case Height | 3 mm |
| Package / Case | 12.95 mm x 9.4 mm |
| Case Width | 9.4 mm |
| RoHS | RoHS Compliant |
| Product Range | :AVX - LMXN Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Unshielded |
| DC Resistance Max | :0.018ohm |
| Saturation Current (Isat) | :4.2A |
| Weight (kg) | 0 |
| Tariff No. | 85045095 |
