LMXN1915M102CTAS
POWER INDUCTOR 1000UH 20%
廠商型號:
LMXN1915M102CTAS
芯天下內部編號:
10-LMXN1915M102CTAS
生產廠商:
AVX Corporation
描述:
POWER INDUCTOR 1000UH 20%
產品類別:
Inductors, Coils, Chokes|Fixed Inductors|LMXN

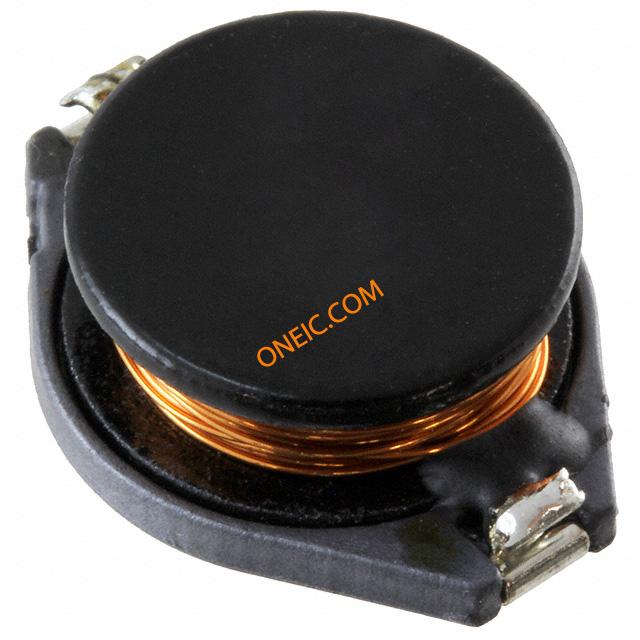

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Matchcode | INDC1000U20% |
| T(A)min | -40°C |
| Leadfree Defin. | RoHS-conform |
| Unit Pack | 250 |
| Mounting | SMD |
| MOQ | 250 |
| Length | 18.54mm |
| Current I | 530mA |
| Test frequency | 0.1MHz |
| Width | 15.24mm |
| Tolerance | 20% |
| T(A)max | 125°C |
| Technology | WIREWOUND |
| Inductance | 1000μH |
| Standard Leadtime | 13 weeks |
| Automotive | NO |
| Height | 7.11mm |
| DCR | 2.01Ohm |
| Packaging | Tape & Reel (TR) |
| Current Rating | 1A |
| DC Resistance (DCR) | 1.8 Ohm Max |
| Height - Seated (Max) | 0.280" (7.11mm) |
| Type | Wirewound |
| Standard Package | 250 |
| Shielding | Unshielded |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Frequency - Test | 100kHz |
| Current - Saturation | 1A |
| Package/Case | Non Standard |
| rohs | Lead free / RoHS Compliant |
| Other Names | 478-7107-1 |
| Maximum DC Resistance | 1.8 Ohms |
| Product | SMD Power Inductors |
| Product Category | Fixed Inductors |
| Dimensions | 15.24 mm W x 18.54 mm L x 7.11 mm H |
| Operating Temperature Range | - 40 C to + 125 C |
| Maximum DC Current | 1 A |
| Series | LMXN |
| Termination Style | SMD/SMT |
| Case Length | 18.54 mm |
| Test Frequency | 100 kHz |
| Case Height | 7.11 mm |
| Package / Case | 18.54 mm x 15.24 mm |
| Case Width | 15.24 mm |
| RoHS | RoHS Compliant |
