LMXN2216M2R2BTAS
POWER INDUCTOR 2.2UH 20%
廠商型號:
LMXN2216M2R2BTAS
芯天下內部編號:
10-LMXN2216M2R2BTAS
生產廠商:
AVX Corporation
描述:
POWER INDUCTOR 2.2UH 20%
產品類別:
Inductors, Coils, Chokes|Fixed Inductors|LMXN

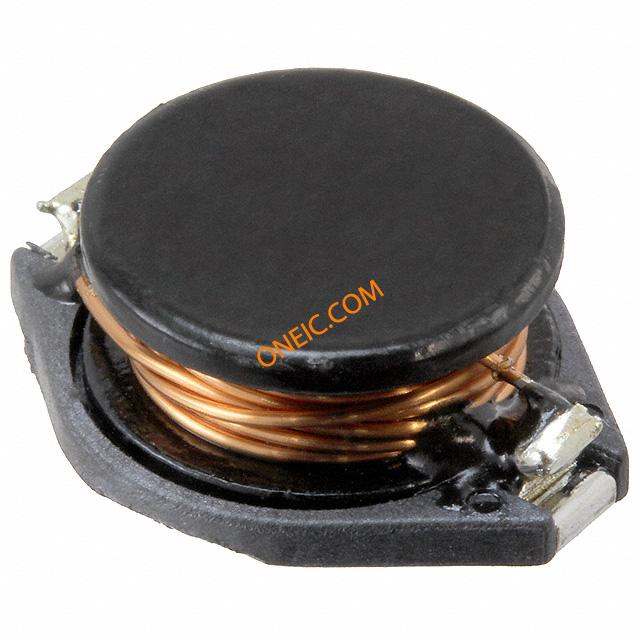

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Matchcode | INDC22U20% |
| T(A)min | -40°C |
| Leadfree Defin. | RoHS-conform |
| Unit Pack | 250 |
| Mounting | SMD |
| MOQ | 250 |
| Length | 22.35mm |
| Current I | 20000mA |
| Test frequency | 0.1MHz |
| Width | 16.26mm |
| Tolerance | 20% |
| T(A)max | 85°C |
| Technology | WIREWOUND |
| Inductance | 2.2μH |
| Standard Leadtime | 13 weeks |
| Automotive | NO |
| Height | 8mm |
| DCR | 0.006Ohm |
| Packaging | Tape & Reel (TR) |
| Current Rating | 20A |
| DC Resistance (DCR) | 6 mOhm Max |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Type | Wirewound |
| Standard Package | 250 |
| Shielding | Unshielded |
| Size / Dimension | 0.880" L x 0.640" W (22.35mm x 16.26mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Non Standard |
| Frequency - Test | 100kHz |
| Other Names | 478-7108-2 |
| rohs | Lead free / RoHS Compliant |
| Maximum DC Resistance | 6 mOhms |
| Product | SMD Power Inductors |
| Product Category | Fixed Inductors |
| Dimensions | 16.26 mm W x 22.35 mm L x 8 mm H |
| Operating Temperature Range | - 40 C to + 85 C |
| Maximum DC Current | 20 A |
| Series | LMXN |
| Termination Style | SMD/SMT |
| Case Length | 22.35 mm |
| Test Frequency | 100 kHz |
| Case Height | 8 mm |
| Case Width | 16.26 mm |
| RoHS | RoHS Compliant |
| Product Range | :AVX - LMXN Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Unshielded |
| DC Resistance Max | :6000μohm |
| Saturation Current (Isat) | :20A |
| Core Material | :Ferrite |
| Weight (kg) | 0 |
| Tariff No. | 85045095 |
