LTL1BEKVJNN
LED Bi-Color Green/Red 575nm/639nm 3-Pin
廠商型號:
LTL1BEKVJNN
芯天下內部編號:
203-LTL1BEKVJNN
生產廠商:
lite-on
描述:
LED Bi-Color Green/Red 575nm/639nm 3-Pin
產品類別:
Lighting|HB LEDs

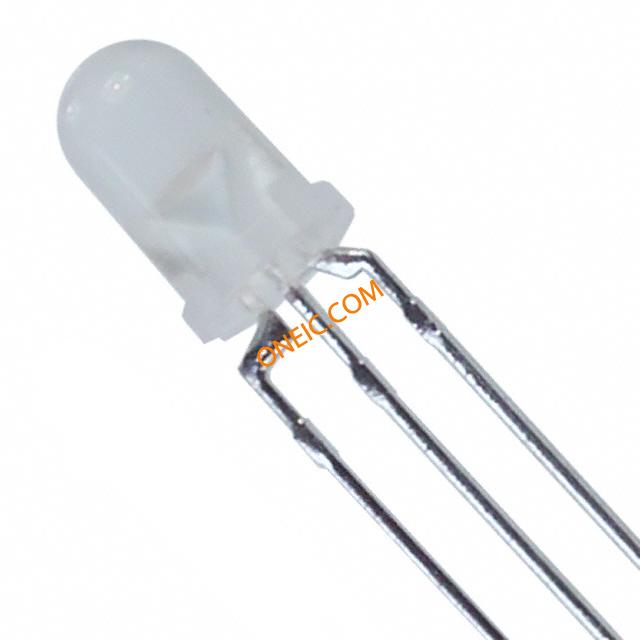

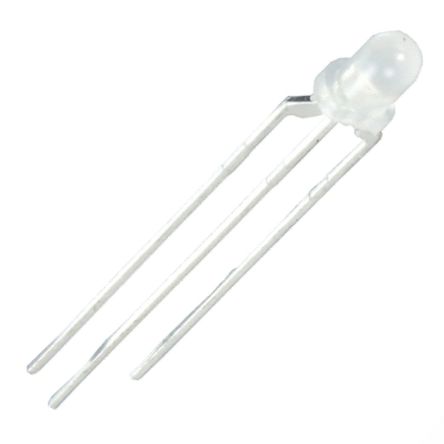

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Bi-Color |
| Number of LEDs | 2 |
| LED Material | AlGaInP |
| Intensity | 110 mcd |
| Peak Wavelength | 575/639 nm |
| Color | Green/Red |
| Lens Appearance | Colorless Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 45 ° |
| Mounting Orientation | Right Angle |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red, Green |
| Luminous Intensity | 110 mcd |
| Wavelength/Color Temperature | 639 nm, 575 nm |
| Lens Color/Style | Diffused |
| LED Size | T-1 |
| Packaging | Bulk |
| Lens Dimensions | 3 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 1000 |
| Voltage - Forward (Vf) Typ | 2.1V Green, 2V Red |
| Mounting Type | Through Hole |
| Lens Style/Size | Round with Domed Top, 3mm, T-1 |
| Wavelength - Dominant | 572nm, 631nm |
| Millicandela Rating | 110mcd Green, 110mcd Red |
| Wavelength - Peak | 575nm, 639nm |
| Current - Test | 20mA |
| Height | 5.15mm |
| Lens Type | Diffused, White |
| Package/Case | Radial - 3 Leads |
| rohs | Lead free / RoHS Compliant |
| Forward Current | 20 mA |
| 高度 | 5.15mm |
| 視角 | 45° |
| 顏色 | Green, Red |
| 毫燭光等級 | 110mcd Green, 110mcd Red |
| 透鏡類型 | Diffused, White |
| 透鏡形狀 | 圓形 |
| LED 數目 | 1 |
| 光強度 | 250（紅色）mcd，450（綠色）mcd |
| 安裝類型 | 通孔安裝 |
| 正向電流 | 60 (Green) mA, 90 (Red) mA |
| LED 材料 | AlInGaP |
| 尺寸 | 4.05 (Dia.) x 5.15mm |
| 針數目 | 3 |
| 透鏡表面 | 漫射 |
| 正向電壓 | 2.4 V |
| 透鏡顏色 | 白色 |
| LED 顏色 | 綠色，紅色 |
| 主波長 | 572（綠色）nm，631（紅色）nm |
