LTV-814

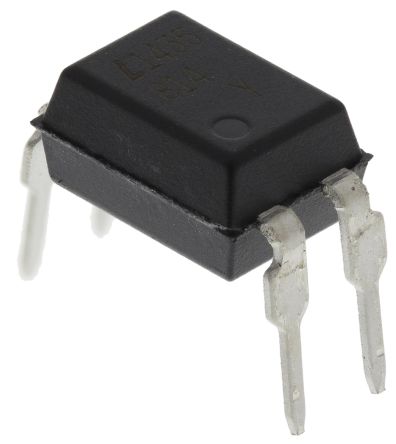

Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP
廠商型號:
LTV-814
芯天下內部編號:
203-LTV-814
生產廠商:
lite-on
描述:
Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP
產品類別:
Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 4PDIP |
| Input Type | AC |
| Output Type | DC |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage | 1.2 V |
| Maximum Collector Emitter Voltage | 35 V |
| Maximum Rise Time | 18 us |
| Maximum Forward Voltage | 1.4 V |
| Minimum Isolation Voltage | 5000 Vrms |
| Maximum Collector Emitter Saturation Voltage | 200 mV |
| Maximum Current Transfer Ratio @ Current | 300 % |
| Maximum Input Current | 50 mA |
| Maximum Power Dissipation | 200 mW |
| Operating Temperature | -30 to 100 °C |
| Standard Package | Rail / Tube |
| Product Category | Transistor Output Optocouplers |
| RoHS | RoHS Compliant |
| Isolation Voltage | 5000 Vrms |
| Current Transfer Ratio | 300 % |
| Maximum Forward Diode Voltage | 1.4 V |
| Maximum Input Diode Current | 50 mA |
| Maximum Collector Current | 50 mA |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 30 C |
| Package / Case | PDIP-4 |
| Packaging | Tube |
| Maximum Fall Time | 18 us |
| Output Device | NPN Phototransistor |
| Factory Pack Quantity | 100 |
| Package Width | 6.5 |
| Mounting | Through Hole |
| Minimum Isolation Voltage | 5000 |
| PCB | 4 |
| Maximum Fall Time | 18 |
| Maximum Power Dissipation | 200 |
| Maximum Collector Emitter Saturation Voltage | 200 |
| EU RoHS | Compliant |
| Maximum Input Current | 50 |
| Pin Count | 4 |
| Minimum Operating Temperature | -30 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 100 |
| Maximum Rise Time | 18 |
| Maximum Forward Voltage | 1.4 |
| Package Length | 4.6 |
| Maximum Collector Emitter Voltage | 35 |
| Package Height | 3.5 |
| Maximum Current Transfer Ratio | 300 |
| Maximum Collector Current | 50 |
| Lead Shape | Through Hole |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Min) | 20% @ 1mA |
| Mounting Type | Through Hole |
| Current Transfer Ratio (Max) | 300% @ 1mA |
| Vce Saturation (Max) | 200mV |
| Voltage - Output | 35V |
| Number of Channels | 1 |
| Current - DC Forward (If) | ±50mA |
| Voltage - Isolation | 5000Vrms |
| Package/Case | 4-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Collector Current (DC) (Max) | 0.05 A |
| Collector-Emitter Voltage | 35 V |
| Collector-Emitter Saturation Voltage | 0.2 V |
| Power Dissipation | 0.2 W |
| Operating Temp Range | -30C to 100C |
| Package Type | PDIP |
| Rise Time | 18000 ns |
| Number of Elements | 1 |
| Operating Temperature Classification | Commercial |
| Forward Voltage | 1.4 V |
| Forward Current | 50 mA |
| Fall Time | 18000 ns |
| Rad Hardened | No |
| DELETED | Compliant |
| Collector Current (DC) | 0.05 A |
| 電流傳輸比（最大值） | 300% @ 1mA |
| 輸入類型 | AC, DC |
| 電壓 - 隔離 | 5000Vrms |
| 電流傳輸比（最小值） | 20% @ 1mA |
| 封裝/外殼 | 4-DIP (0.300", 7.62mm) |
| 通道數 | 1 |
| 裝配類型 | Through Hole |
| 輸出類型 | Transistor |
| 電流 - 輸出/通道 | 50mA |
| Vce 飽和值（最大值） | 200mV |
| 系列 | LTV-8x4 |
| 典型上升時間 | 4μs |
| 輸出設備 | 晶體管 |
| 最大正向電壓 | 1.4V |
| 最大輸入電流 | 50 mA |
| 安裝類型 | 通孔安裝 |
| 隔離電壓 | 5000 V ac |
| 封裝類型 | PDIP |
| 針數目 | 4 |
| 典型下降時間 | 3μs |
| 輸入電流類型 | 交流 |
| 最大電流傳輸比 | 300% |
| 通道數目 | 1 |
| If - Forward Current | 50 mA |
| Brand | Lite-On |
| Configuration | 1 Channel |
| Vf - Forward Voltage | 1.4 V |
| Length | 4.6 mm |
| Height | 3.5 mm |
| Mounting Style | Through Hole |
| Pd - Power Dissipation | 200 mW |
