LTV-814S

Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD

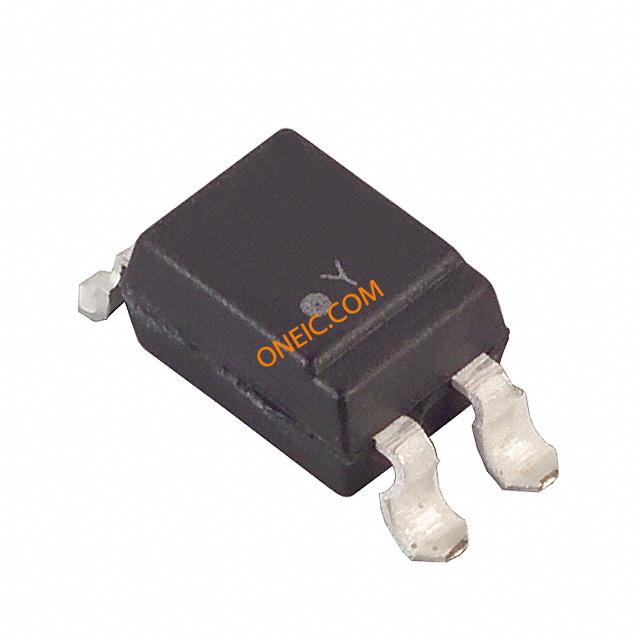

Thumbnail LTV-814S Thumbnail LTV-814S Thumbnail LTV-814S
廠商型號: LTV-814S
芯天下內部編號: 203-LTV-814S
生產廠商:
lite-on lite-on
描述: Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD
產品類別: Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers
客戶編號:
規格書: 查看PDF
瀏覽次數: 7

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package 4PDIP SMD
Input Type AC
Output Type DC
Number of Channels per Chip 1
Typical Forward Voltage 1.2 V
Maximum Collector Emitter Voltage 35 V
Maximum Rise Time 18 us
Maximum Forward Voltage 1.4 V
Minimum Isolation Voltage 5000 Vrms
Maximum Collector Emitter Saturation Voltage 200 mV
Maximum Current Transfer Ratio @ Current 300 %
Maximum Input Current 50 mA
Maximum Power Dissipation 200 mW
Operating Temperature -30 to 110 °C
Standard Package Rail / Tube
Product Category Transistor Output Optocouplers
RoHS RoHS Compliant
Isolation Voltage 5000 Vrms
Current Transfer Ratio 300 %
Maximum Forward Diode Voltage 1.4 V
Maximum Input Diode Current 50 mA
Maximum Collector Current 50 mA
Maximum Operating Temperature + 100 C
Minimum Operating Temperature - 30 C
Package / Case PDIP-4 Gull Wing
Packaging Tube
Maximum Fall Time 18 us
Output Device NPN Phototransistor
Factory Pack Quantity 100
Supplier Package PDIP SMD
Standard Package Name PDIP SMD
EU RoHS Compliant
Maximum Operating Temperature 110
Maximum Rise Time 18
Maximum Forward Voltage 1.4
Maximum Power Dissipation 200
Maximum Input Current 50
Minimum Isolation Voltage 5000
Maximum Collector Emitter Voltage 35
Maximum Collector Current 50
Maximum Fall Time 18
Minimum Operating Temperature -30
Maximum Collector Emitter Saturation Voltage 200
Maximum Current Transfer Ratio 300
Pin Count 4
Lead Shape Gull-wing
Package Width 6.5
Mounting Surface Mount
PCB 4
Package Length 4.6
Package Height 3.5
Current - Output / Channel 50mA
Current Transfer Ratio (Min) 20% @ 1mA
Mounting Type Surface Mount
Current Transfer Ratio (Max) 300% @ 1mA
Vce Saturation (Max) 200mV
Voltage - Output 35V
Number of Channels 1
Current - DC Forward (If) ±50mA
Voltage - Isolation 5000Vrms
Package/Case 4-SMD, Gull Wing
rohs Lead free / RoHS Compliant
Collector Current (DC) (Max) 0.05 A
Collector-Emitter Voltage 35 V
Collector-Emitter Saturation Voltage 0.2 V
Power Dissipation 0.2 W
Operating Temp Range -30C to 100C
Package Type PDIP SMD
Rise Time 18000 ns
Number of Elements 1
Operating Temperature Classification Commercial
Forward Voltage 1.4 V
Forward Current 50 mA
Fall Time 18000 ns
Rad Hardened No
DELETED Compliant
Collector Current (DC) 0.05 A
If - Forward Current 50 mA
Brand Lite-On
Configuration 1 Channel
Length 4.6 mm
Vf - Forward Voltage 1.4 V
Height 3.5 mm
Mounting Style SMD/SMT
Pd - Power Dissipation 200 mW
