LTV-814HM
Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP
廠商型號:
LTV-814HM
芯天下內部編號:
203-LTV-814HM
生產廠商:
lite-on
描述:
Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP
產品類別:
Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers

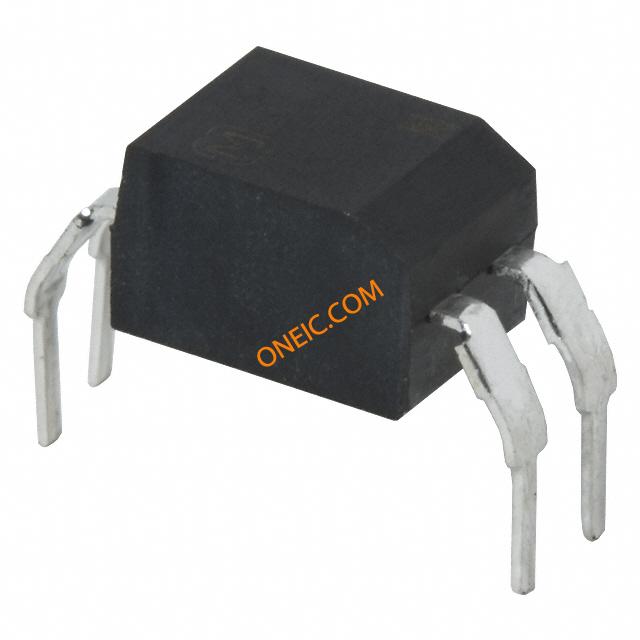

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 4PDIP |
| Input Type | AC |
| Output Type | DC |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage | 1.4 V |
| Maximum Collector Current | 80 mA |
| Maximum Collector Emitter Voltage | 35 V |
| Maximum Rise Time | 18 us |
| Maximum Forward Voltage | 1.7 V |
| Minimum Isolation Voltage | 5000 Vrms |
| Maximum Collector Emitter Saturation Voltage | 200 mV |
| Maximum Current Transfer Ratio @ Current | 80 % |
| Maximum Input Current | 150 mA |
| Maximum Power Dissipation | 320 mW |
| Operating Temperature | -30 to 100 °C |
| Standard Package | Rail / Tube |
| Product Category | Transistor Output Optocouplers |
| RoHS | RoHS Compliant |
| Isolation Voltage | 5000 Vrms |
| Current Transfer Ratio | 80 % |
| Maximum Forward Diode Voltage | 1.7 V |
| Maximum Input Diode Current | 150 mA |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 30 C |
| Package / Case | PDIP-4 |
| Packaging | Tube |
| Maximum Fall Time | 18 us |
| Output Device | NPN Phototransistor |
| Factory Pack Quantity | 100 |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Min) | 20% @ ±100mA |
| Mounting Type | Through Hole |
| Current Transfer Ratio (Max) | 80% @ ±100mA |
| Vce Saturation (Max) | 200mV |
| Voltage - Output | 35V |
| Number of Channels | 1 |
| Current - DC Forward (If) | ±150mA |
| Voltage - Isolation | 5000Vrms |
| Other Names | LTV814HM |
| Package/Case | 4-DIP (0.400", 10.16mm) |
| rohs | Lead free / RoHS Compliant |
| Fall Time | 18 us |
| If - Forward Current | 100 mA |
| Brand | Lite-On |
| Vf - Forward Voltage | 1.7 V |
| Length | 4.6 mm |
| Rise Time | 18 us |
| Height | 3.5 mm |
| Mounting Style | Through Hole |
| Collector-Emitter Breakdown Voltage | 35 V |
| Pd - Power Dissipation | 320 mW |
