UPD2415
Solid State Relays - PCB Mount UPD Single-Phase 240V / 15A ZC PCB
廠商型號:
UPD2415
芯天下內部編號:
86-UPD2415
生產廠商:
Crydom
描述:
Solid State Relays - PCB Mount UPD Single-Phase 240V / 15A ZC PCB
產品類別:
Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - PCB Mount

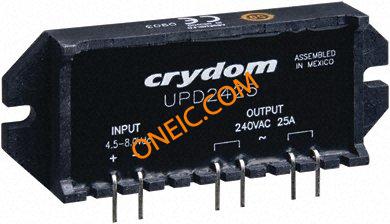

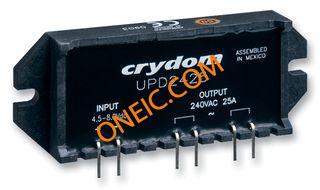

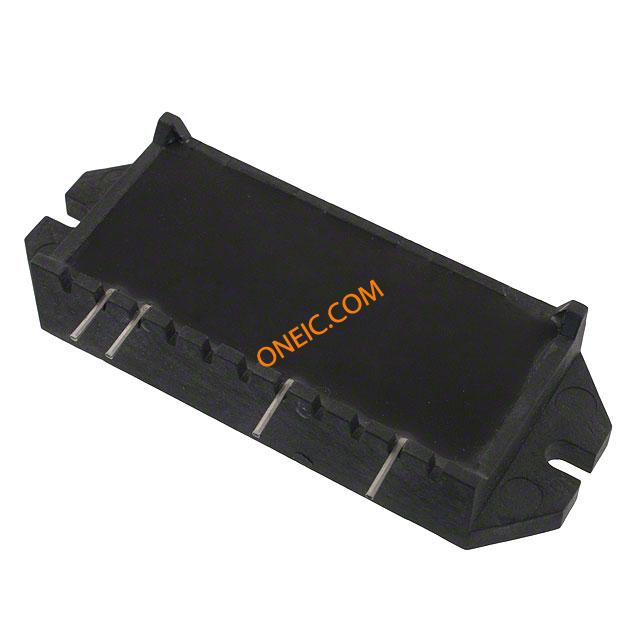

所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Control Voltage Range | 3 VDC to 32 VDC |
| Load Voltage Rating | 24 VAC to 280 VAC |
| Load Current Rating | 15 A |
| Output Device | SCR |
| Package / Case | SIP SSR |
| Product Type | PCB Mount |
| Series | UPD24 |
| Termination Style | Quick Connect |
| Relay Type | Relay |
| Mounting Type | Through Hole |
| Load Current | 15A |
| Voltage - Load | 24 ~ 280 V |
| Supplier Device Package | 6-SIP |
| Output Type | AC, Zero Cross |
| Packaging | Bulk |
| Circuit | SPST-NO (1 Form A) |
| Standard Package | 20 |
| Voltage - Input | 3 ~ 32VDC |
| Other Names | CC1710 |
| Package/Case | 6-SIP |
| rohs | Lead free / RoHS Compliant |
| Depth | 0.5in |
| Height | 1.125in |
| Length | 3.086in |
| Maximum Control Voltage | 32 V dc |
| Maximum Load Current | 15 A rms |
| Maximum Load Voltage | 280 V rms |
| Maximum Turn On Time | 1/2 cycle |
| Minimum Control Voltage | 3 V dc |
| Minimum Load Voltage | 24 V rms |
| Off State Leakage Current | 0.1 mA rms |
| Package Style | SIP |
| Switching Type | Zero Crossing |
| Terminal Type | Through Hole |
| Input Current | 10 mA |
| Current,Load | 15Arms |
| Current,Surge | 120Apk |
| Type | Relay |
| VoltageRange | 3-32VDC |
| Voltage,Operating | 24-280VAC |
