UPD2415DF-10
Solid State Relays - PCB Mount SSR DUAL SPST-NO 240VAC 15A QC
廠商型號:
UPD2415DF-10
芯天下內部編號:
86-UPD2415DF-10
生產廠商:
Crydom
描述:
Solid State Relays - PCB Mount SSR DUAL SPST-NO 240VAC 15A QC
產品類別:
Relays|Solid State Relays|UPD24D

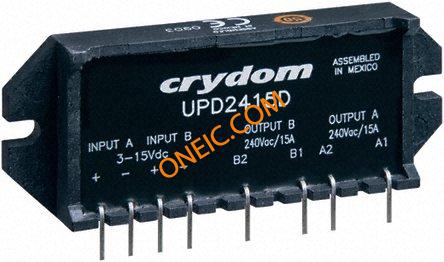

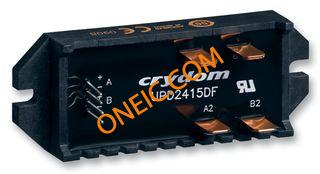

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Relay Type | Relay |
| Mounting Type | Chassis Mount or Panel Mount |
| Load Current | 15A |
| Voltage - Load | 24 ~ 280 V |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Output Type | AC |
| Packaging | Bulk |
| Circuit | DPST (2 Form A) |
| Standard Package | 20 |
| Voltage - Input | 3 ~ 15VDC |
| Package/Case | Module |
| Depth | 28.45mm |
| Height | 12.7mm |
| Length | 78.23mm |
| Maximum Control Voltage | 32 V |
| Maximum Load Current | 15 A rms |
| Maximum Load Voltage | 280 V rms |
| Maximum Turn On Time | 0.02 ms |
| Minimum Control Voltage | 3 V dc |
| Minimum Load Current | 150 mA |
| Minimum Load Voltage | 24 V ac |
| Off State Leakage Current | 0.1 mA |
| Output Device | SCR |
| Switching Type | Instantaneous Switching |
| rohs | Compliant |
| Series | UPD24 |
| Control Voltage Range | 3 VDC to 32 VDC |
| Load Voltage Rating | 24 VAC to 280 VAC |
| Minimum Operating Temperature | - 40 C |
| Product Type | PCB Mount |
| Maximum Operating Temperature | + 80 C |
| Load Current Rating | 15 A |
| RoHS | RoHS Compliant |
