UPD2415TPF
Solid State Relays - PCB Mount UPD Three-Phase 240V 15A ZC Panel Mt
廠商型號:
UPD2415TPF
芯天下內部編號:
86-UPD2415TPF
生產廠商:
Crydom
描述:
Solid State Relays - PCB Mount UPD Three-Phase 240V 15A ZC Panel Mt
產品類別:
Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - PCB Mount
客戶編號:
規格書:
查看PDF

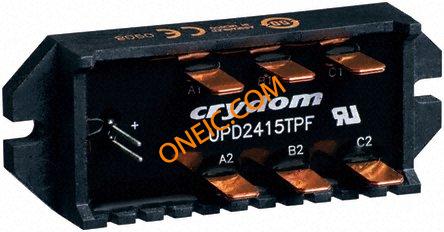

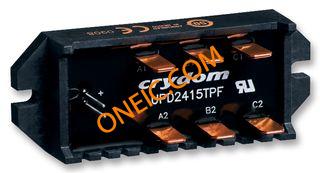

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Control Voltage Range | 3 VDC to 32 VDC |
| Load Voltage Rating | 24 VAC to 280 VAC |
| Load Current Rating | 15 A |
| Output Device | SCR |
| Package / Case | SIP SSR |
| Product Type | PCB Mount |
| Series | UPD24 |
| Termination Style | Quick Connect |
| Relay Type | Relay |
| Mounting Type | Chassis Mount or Panel Mount |
| Load Current | 15A |
| Voltage - Load | 24 ~ 280 V |
| Output Type | AC, Zero Cross |
| Packaging | Bulk |
| Circuit | 3PST (3 Form A) |
| Standard Package | 20 |
| Voltage - Input | 4.5 ~ 8VDC |
| Other Names | CC1715 |
| Package/Case | Module |
| rohs | Lead free / RoHS Compliant |
| Depth | 28.45mm |
| Height | 12.7mm |
| Length | 78.23mm |
| Maximum Control Voltage | 8 V dc |
| Maximum Load Current | 15 A rms |
| Maximum Load Voltage | 280 V rms |
| Maximum Turn On Time | 1/2 cycle |
| Minimum Control Voltage | 4.5 V dc |
| Minimum Load Current | 150 mA |
| Minimum Load Voltage | 24 V ac |
| Off State Leakage Current | 10 mA |
| Switching Type | Zero Voltage |
| Input Current | 10 mA |
| Brand/Series | UPD24Series |
| Current,Load | 15A |
| Current,Surge | 120Apk |
| MountingType | PCB |
| NumberofPins | 4 |
| RelayType | SolidState |
| SpecialFeatures | Heatsinkingrequired |
| Standards | UL,CE |
| Termination | QC |
| Type | Relay |
| VoltageRange | 3-32VDC |
| Voltage,Control | 3-32VDC |
| Voltage,Operating | 24-280VAC |
