UPM1E102MHD
Aluminum Electrolytic Capacitors - Leaded 25volts 1000uF 12.5x25 20% 5LS
廠商型號:
UPM1E102MHD
芯天下內部編號:
244-UPM1E102MHD
生產廠商:
Nichicon
描述:
Aluminum Electrolytic Capacitors - Leaded 25volts 1000uF 12.5x25 20% 5LS
產品類別:
Passive Components|Capacitors|Aluminum Electrolytic Capacitors|Aluminum Electrolytic Capacitors - Leaded

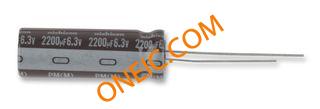

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 1000 uF |
| Tolerance | 20 % |
| Voltage Rating | 25 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | Radial |
| Case Diameter | 12.5 mm |
| Case Length | 25 mm |
| Lead Spacing | 5 mm |
| Product | Low Impedance Electrolytic Capacitors |
| Dissipation Factor DF | 0.14 |
| Leakage Current | 750 uA |
| Load Life | 5000 hr |
| Ripple Current | 1700 mA |
| Series | PM |
| Factory Pack Quantity | 100 |
| Lead Diameter | 0.6 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 4@1Min |
| Mounting | Through Hole |
| Lifetime | 5000 |
| Product Height | 25 |
| Capacitance Value | 1000uF |
| Packaging | Bulk |
| Lead Pitch For Radial | 5 |
| Voltage | 25VDC |
| Ripple Current | 1430 |
| Type | Electrolytic |
| Product Diameter | 12.5 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 12.5 mm Dia. x 25 mm L |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.6 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 4 uA |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Lifetime | 5000 hr |
| Size (mm) | 12.5 X 25 |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 25 mm |
| Product Diameter (mm) | 12.5 mm |
| Product Range | :NICHICON - PM Series |
| Capacitance Tolerance | :± 20% |
| Diameter | :12.5mm |
| Height | :25mm |
| Capacitor Terminals | :Radial Leaded |
| Life Time @ Temperature | :5000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| External Length / Height | :25mm |
| Impedance | :0.036ohm |
| Impedance Frequency | :100kHz |
| Impedance Temperature | :20°C |
| Lead Diameter | :0.6mm |
| No. of Pins | :2 |
| Operating Life Temperature | :105°C |
| Operating Lifetime | :5000h |
| Ripple Current AC | :1430mA |
| Ripple Current Frequency | :120Hz |
| Ripple Current Temperature | :105°C |
| Terminal Type | :Wire Ended |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :25V |
| Weight (kg) | 0.004 |
| Tariff No. | 85322200 |
| CaseSize | 12.5mmDia.x25mmL |
| LeadSpacing | 5mm |
| Material,Element | AluminumElectrolytic |
| Termination | Radial |
| Voltage,Rating | 25VDC |
