UPM1E221MPD
Cap Aluminum 220uF 25V 20% (8 X 15mm) Radial 3.5mm 455mA 3000h 105°C Bulk
廠商型號:
UPM1E221MPD
芯天下內部編號:
244-UPM1E221MPD
生產廠商:
nichicon
描述:
Cap Aluminum 220uF 25V 20% (8 X 15mm) Radial 3.5mm 455mA 3000h 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum

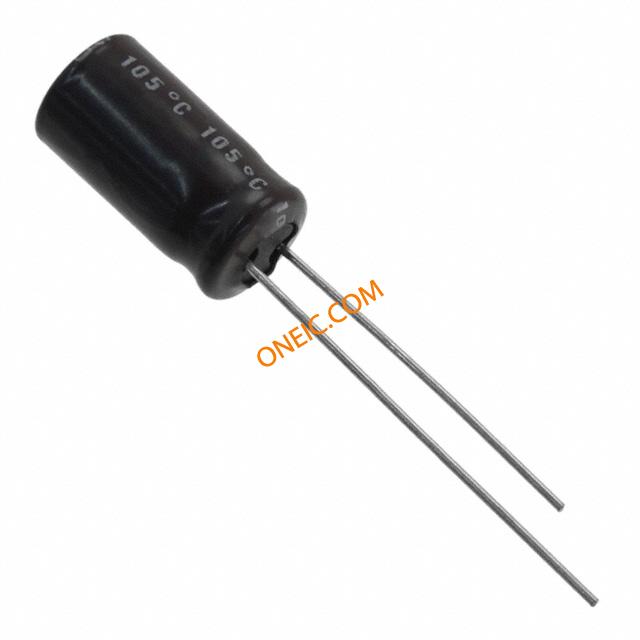

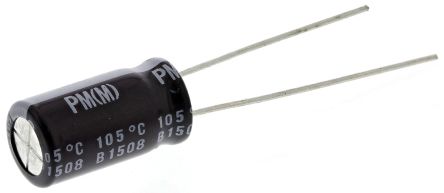

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 220 uF |
| Voltage | 25 Vdc |
| Tolerance | 20 % |
| Ripple Current | 455 mA |
| Lifetime | 3000 h |
| Product Diameter | 8 mm |
| Product Height | 15 mm |
| Lead Pitch For Radial | 3.5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 220 uF |
| Voltage Rating | 25 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Case Diameter | 8 mm |
| Case Length | 15 mm |
| Lead Spacing | 3.5 mm |
| Product | Low Impedance Electrolytic Capacitors |
| Dissipation Factor DF | 0.14 |
| Leakage Current | 165 uA |
| Load Life | 3000 hr |
| Series | PM |
| Factory Pack Quantity | 200 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 8 mm Dia. x 15 mm L |
| Type | Extremely Low Impedance, High Reliability |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.6 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 4 uA |
| Lead Spacing (nom) | 3.5 mm |
| Mounting Style | Through Hole |
| Packaging | Bulk |
| Size (mm) | 8 X 15 |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 15 mm |
| Product Diameter (mm) | 8 mm |
| Product Range | :NICHICON - PM Series |
| Capacitance Tolerance | :± 20% |
| Diameter | :8mm |
| Height | :15mm |
| Capacitor Terminals | :Radial Leaded |
| Life Time @ Temperature | :3000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| External Length / Height | :15mm |
| Impedance | :0.11ohm |
| Impedance Frequency | :100kHz |
| Impedance Temperature | :20°C |
| Lead Diameter | :0.6mm |
| No. of Pins | :2 |
| Operating Life Temperature | :105°C |
| Operating Lifetime | :3000h |
| Ripple Current AC | :455mA |
| Ripple Current Frequency | :120Hz |
| Ripple Current Temperature | :105°C |
| Terminal Type | :Wire Ended |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :25V |
| Weight (kg) | 0.002 |
| Tariff No. | 85322200 |
| CaseSize | 8mmDia.x15mmL |
| LeadSpacing | 3.5mm |
| Material,Element | AluminumElectrolytic |
| Termination | Radial |
| Voltage,Rating | 25VDC |
