UPM1E151MPD
Aluminum Electrolytic Capacitors - Leaded 25volts 150uF 8x11.5 20% 3.5LS
廠商型號:
UPM1E151MPD
芯天下內部編號:
244-UPM1E151MPD
生產廠商:
Nichicon
描述:
Aluminum Electrolytic Capacitors - Leaded 25volts 150uF 8x11.5 20% 3.5LS
產品類別:
Passive Components|Capacitors|Aluminum Electrolytic Capacitors|Aluminum Electrolytic Capacitors - Leaded

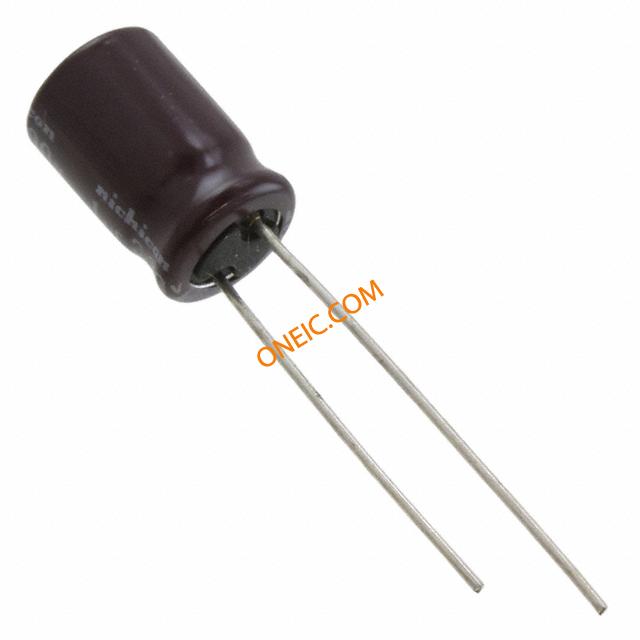

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 150 uF |
| Tolerance | 20 % |
| Voltage Rating | 25 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | Radial |
| Case Diameter | 8 mm |
| Case Length | 11.5 mm |
| Lead Spacing | 3.5 mm |
| Product | Low Impedance Electrolytic Capacitors |
| Packaging | Bulk |
| Dissipation Factor DF | 0.14 |
| Leakage Current | 112.5 uA |
| Load Life | 3000 hr |
| Ripple Current | 460 mA |
| Series | PM |
| Factory Pack Quantity | 200 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 8 mm Dia. x 11.5 mm L |
| Type | Extremely Low Impedance, High Reliability |
| Lead Style | Straight |
| CaseSize | 8mmDia.x11.5mmL |
| LeadSpacing | 3.5mm |
| Material,Element | AluminumElectrolytic |
| Termination | Radial |
| Voltage,Rating | 25VDC |
| 電容 | 150μF |
| 大小/尺寸 | 0.315" Dia (8.00mm) |
| 容差 | ±20% |
| 操作溫度 | -55°C ~ 105°C |
| 紋波電流 | 320mA |
| 應用 | General Purpose |
| 不同溫度時的使用壽命 | 3000 Hrs @ 105°C |
| 額定電壓 | 25V |
