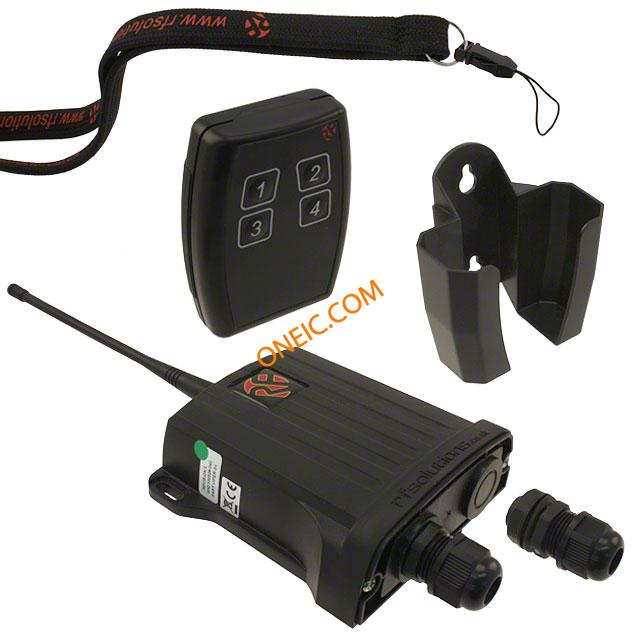

VIPER-S4
REMOTE CONTROL SYSTEM FM 4CH
廠商型號:
VIPER-S4
芯天下內部編號:
337-VIPER-S4
生產廠商:
RF Solutions
描述:
REMOTE CONTROL SYSTEM FM 4CH
產品類別:
Computing & Peripherals|Wireless Components & Modules|Remote Control Systems & Kits
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Function | Transmitter and Receiver, Set |
| Applications | General Purpose |
| Frequency | 433.92MHz |
| Voltage - Supply | 10 V ~ 30 V |
| Standard Package | 1 |
| Interface | Handheld, 4 Channel |
| Power - Output | 10mW |
| Other Names | VIPERS4 |
| Depth | 112mm |
| Dimensions | 130 x 112 x 42mm |
| Height | 42mm |
| Maximum Operating Temperature | +50°C |
| Maximum Supply Voltage | 30V dc |
| Minimum Operating Temperature | -10°C |
| Minimum Supply Voltage | 10.5V dc |
| Modulation | FM |
| Number of Channels | 4 |
| Number of Key Fob Buttons | 4 |
| Width | 130mm |
| rohs | Compliant |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Hardware / Software - Keyfob |
| Kit Features | :Robust FM Modulation, 4 Button Handheld Transmitter, One-Many / Many-One / One-One |
| Type | :Remote Control System |
| Weight (kg) | 0.15 |
| Tariff No. | 85423190 |
