VIPER06XN
IC OFFLINE SWITCH PWM SMPS 7PDIP
廠商型號:
VIPER06XN
芯天下內部編號:
390-VIPER06XN
生產廠商:
STMicroelectronics
描述:
IC OFFLINE SWITCH PWM SMPS 7PDIP
產品類別:
Semiconductors|Integrated Circuits - ICs|Power Management ICs|AC/DC Converters

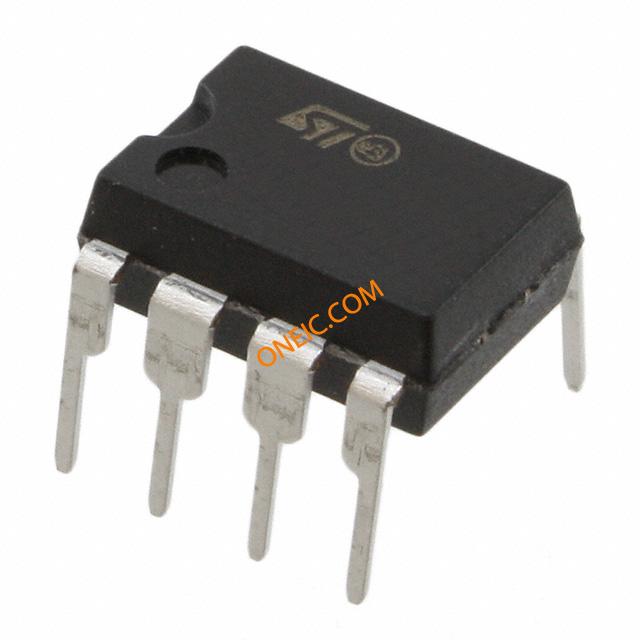

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Unit Pack | 50 |
| MOQ | 2000 |
| Frequency Range | 27kHz ~ 33kHz |
| Standard Package | 50 |
| Supplier Device Package | 7-DIP |
| Output Isolation | Isolated |
| Packaging | Tube |
| Operating Temperature | -25°C ~ 125°C |
| Voltage - Breakdown | 800V |
| Package / Case | 8-DIP (0.154", 3.90mm), 7 Leads |
| Voltage - Input | 85 V ~ 265 VAC |
| Power (Watts) | 8W |
| Other Names | 497-12992-5 |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 50 |
| Switching Frequency | 30 kHz |
| Input / Supply Voltage - Min | 11.5 V |
| Input / Supply Voltage - Max | 23.5 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Mounting Style | Through Hole |
| Duty Cycle - Max | 80 % |
| Output Voltage | 800 V |
| Output Power | 30 mW |
| RoHS | RoHS Compliant |
| Minimum Operating Temperature | - 25 C |
| Supply Current | 1.3 mA |
| Maximum Operating Temperature | + 125 C |
| Type | PWM Low-Standby High Performance Controller |
| Number of Outputs | 1 |
| 系列 | VIPer? plus |
| 輸出隔離 | Isolated |
| 操作溫度 | -25°C ~ 125°C |
| 頻率范圍 | 27kHz ~ 33kHz |
| 電壓 - 輸入 | 85 V ~ 265 VAC |
| 封裝/外殼 | 8-DIP (0.154", 3.90mm), 7 Leads |
| 電壓 - 擊穿 | 800V |
| 功率 (W) | 8W |
| Operating Supply Current | 1.3 mA |
| Series | VIPer Plus |
| Brand | STMicroelectronics |
| T(A) min | -40 °C |
| Package | DIP-7 |
| T(A) max | 150 °C |
| Automotive | NO |
| I(out) | 2.5 A |
| f(s) | 30000 Hz |
| V(in) max | 4.8 V |
| Leadfree Defin | RoHS-conform |
