VIPER06XS
AC to DC Switching Converter Off-Line Switcher 27kHz to 33kHz 10-Pin SSO
廠商型號:
VIPER06XS
芯天下內部編號:
390-VIPER06XS
生產廠商:
STMicroelectronics
描述:
AC to DC Switching Converter Off-Line Switcher 27kHz to 33kHz 10-Pin SSO
產品類別:
Power|Power Management ICs|AC/DC Converters

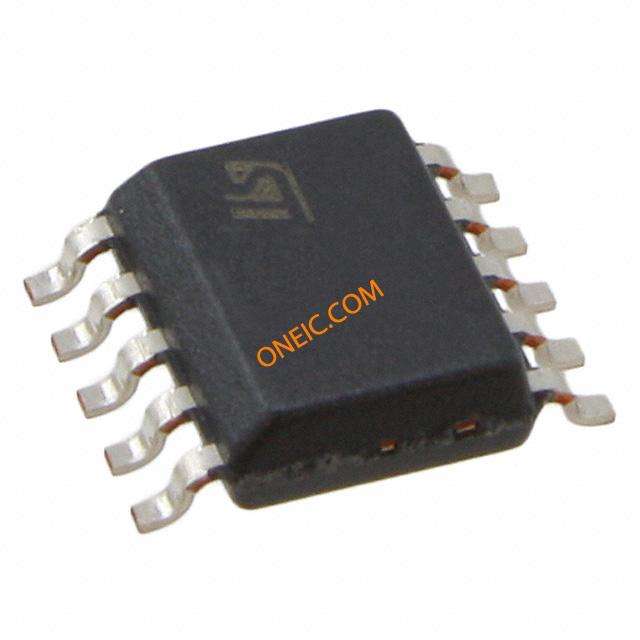

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Supplier Package | SSO |
| Standard Package Name | SSOP |
| EU RoHS | Compliant |
| Package Height | 1.25(Min) |
| Mounting | Surface Mount |
| Package Width | 3.9 |
| PCB | 10 |
| Package Length | 4.9 |
| Pin Count | 10 |
| Lead Shape | Gull-wing |
| Frequency Range | 27kHz ~ 33kHz |
| Standard Package | 100 |
| Supplier Device Package | 10-SSO |
| Output Isolation | Isolated |
| Packaging | Tube |
| Operating Temperature | -25°C ~ 125°C |
| Voltage - Breakdown | 800V |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Voltage - Input | 85 V ~ 265 VAC |
| Power (Watts) | 8W |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | SMD/SMT |
| Product Category | AC/DC Converters |
| Switching Frequency | 30 kHz |
| Input / Supply Voltage - Min | 11.5 V |
| Series | VIPer06 |
| Operating Temperature Range | - 40 C to + 150 C |
| Supply Current | 1.3 mA |
| Duty Cycle - Max | 80 % |
| Output Power | 30 mW |
| RoHS | RoHS Compliant |
| Input / Supply Voltage - Max | 23.5 V |
| Type | PWM Low-Standby High Performance Controller |
| Number of Outputs | 1 |
| Other Names | VIPER06XS-ND |
| 系列 | VIPer? plus |
| 輸出隔離 | Isolated |
| 操作溫度 | -25°C ~ 125°C |
| 頻率范圍 | 27kHz ~ 33kHz |
| 電壓 - 輸入 | 85 V ~ 265 VAC |
| 封裝/外殼 | 10-SOP (0.154", 3.90mm Width) |
| 電壓 - 擊穿 | 800V |
| 功率 (W) | 8W |
| Factory Pack Quantity | 2000 |
| Operating Supply Current | 1.3 mA |
| Brand | STMicroelectronics |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
