Z-15GW2-B
Basic / Snap Action Switches HINGE RLLR LEVER SCW
廠商型號:
Z-15GW2-B
芯天下內部編號:
232-Z-15GW2-B
生產廠商:
Omron Industrial
描述:
Basic / Snap Action Switches HINGE RLLR LEVER SCW
產品類別:
Switches|Snap Action, Limit Switches|Z

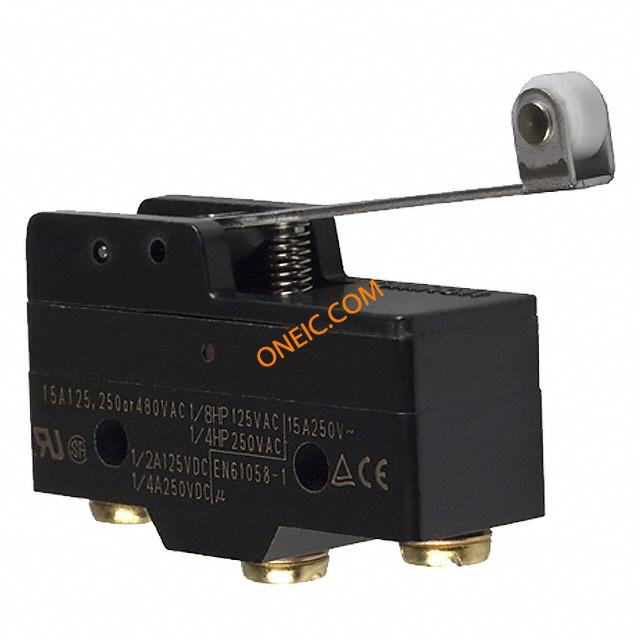

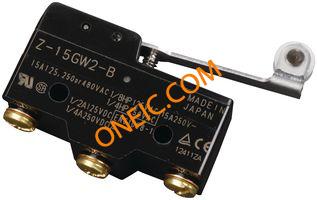

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Hinge Roller Lever |
| Electrical Life | 500000 |
| Product Length | 49.2 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 80 |
| Maximum DC Voltage Rating | 250 |
| Product Depth | 17.45 |
| Mounting | Screw Mount |
| Switch Configuration | N.O./N.C. |
| Maximum Current Rating | 15@250VAC 14VDC |
| Maximum Power Rating | 186.42@(CSA/UL) |
| Pole Throw Configuration | SPDT |
| Maximum AC Voltage Rating | 500 |
| Operating Force | 0.98 |
| Terminal Type | Screw |
| Minimum Operating Temperature | -25 |
| Mechanical Life | 10000000 |
| Actuator Material | Plastic/Stainless Steel/N/A |
| Contact Material | Silver |
| Industry Aliases | Z-15GW2-B |
| Subcategory | Switch Snap Action |
| Lead Time | 56 Days |
| Packaging | Bulk |
| Differential Travel | 0.040" (1.0mm) |
| Switch Function | On-Mom |
| Current Rating | 15A (AC), 6A (DC) |
| Operating Force, Torque | 100gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Termination Style | Screw Terminal |
| Electrical Life | 500,000 Cycles |
| Operating Position | 1.188" (30.2mm) |
| Overtravel | 0.158" (4.0mm) |
| Operating Temperature | -25°C ~ 80°C |
| Actuator Type | Lever, Roller |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP00 |
| Release Force | 22gf |
| Mechanical Life | 10,000,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 250 V |
| Product Category | Basic / Snap Action Switches |
| Contact Form | SPDT |
| Voltage Rating DC | 250 V |
| Operating Force | 1.3 N |
| Series | Z |
| Actuator | Roller Lever |
| Part # Aliases | 1181281 Z15GW2BNC |
| Type | Standard |
| RoHS | RoHS Compliant |
| Contact Configuration | :SPDT |
| Microswitch Type | :Standard |
| Switch Operation | :- |
| Operating Force Max | :100gf |
| Contact Voltage AC Nom | :250V |
| Contact Current Max | :15A |
| Weight (kg) | 0.036 |
| Tariff No. | 85365005 |
| ActuatorType | RollerLever |
| Brand/Series | ZSeries |
| ContactForm | SPDT |
| Current,Rating | 15Amps |
| IPRating | IP00 |
| MountingHoleSize | 4.2mm |
| NumberofPoles | 1 |
| OperatingForce | 3.53Oz. |
| Operation | SnapAction |
| Standards | ULRecognizedFileNo.E41515,CSACertifiedFileNo.LR21642 |
| Termination | Screws |
| Voltage,Rating | 250VAC |
| Lever length | 48.5mm |
| Leads | M4 screws |
| Switches features | with lever (with roller) |
| Switching torque | 1.57N |
| Multiplicity | 1 |
| Contacts configuration | SPDT |
| Gross weight | 0.04 kg |
| Operating temperature | -25...80°C |
| Switch type | microswitch |
| Stable positions number | 1-position |
| Body dimensions | 49.2 x 17.45 x 24.2mm |
| Sealing | IP40 |
| spg | 10 |
| Collective package [pcs] | 10 |
| AC contacts rating (at resistance load) | 15 A / 250 VAC |
| Switching method | ON-(ON) |
