Z-15GW2
Basic / Snap Action Switches BASIC SWITCH
廠商型號:
Z-15GW2
芯天下內部編號:
232-Z-15GW2
生產廠商:
Omron Industrial
描述:
Basic / Snap Action Switches BASIC SWITCH
產品類別:
Switches|Snap Action, Limit Switches|Z
客戶編號:
規格書:
查看PDF

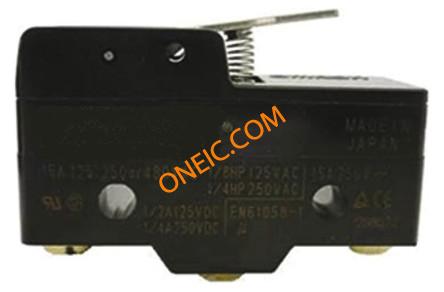

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Hinge Roller Lever |
| Electrical Life | 500000 |
| Product Length | 49.2 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 80 |
| Maximum DC Voltage Rating | 250 |
| Product Depth | 17.45 |
| Mounting | Screw Mount |
| Switch Configuration | N.O./N.C. |
| Product Height | 42.9 |
| Maximum Power Rating | 186.42@(CSA/UL) |
| Pole Throw Configuration | SPDT |
| Maximum AC Voltage Rating | 500 |
| Operating Force | 0.98 |
| Terminal Type | Solder |
| Minimum Operating Temperature | -25 |
| Maximum Current Rating | 15@250VAC 14VDC |
| Mechanical Life | 10000000 |
| Actuator Material | Plastic/Stainless Steel/N/A |
| Contact Material | Silver |
| Industry Aliases | Z-15GW2 |
| Subcategory | Switch Snap Action |
| Lead Time | 56 Days |
| Current Rating | 15A (AC), 6A (DC) |
| Operating Force, Torque | 100gf |
| Voltage Rating - AC | 125V |
| Electrical Life | 500,000 Cycles |
| Termination Style | Solder Lug |
| Operating Temperature | -25°C ~ 80°C |
| Mechanical Life | 10,000,000 Cycles |
| Differential Travel | 0.040" (1.0mm) |
| Overtravel | 0.158" (4.0mm) |
| Standard Package | 1 |
| Switch Function | On-Mom |
| Operating Position | 1.188" (30.2mm) |
| Circuit | SPDT |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP00 |
| Mounting Type | Chassis Mount |
| Packaging | Bulk |
| Actuator Type | Lever, Roller |
| Release Force | 22gf |
| Other Names | Z15GW2 |
| rohs | Lead free / RoHS Compliant |
| Connection Type | Solder |
| Contact Type | Snap Action |
| Depth | 17.45mm |
| Housing Material | Thermosetting Resin |
| IP Rating | IP00 |
| Length | 49.2mm |
| Maximum AC Voltage | 500V |
| Maximum Current | 15 A |
| Maximum DC Voltage | 250V |
| Maximum Operating Temperature | +80°C |
| Mechanical Life Minimum | 20000000 Operations |
| Minimum Operating Temperature | -25°C |
| Normal State Configuration | NO/NC |
| Pole and Throw Configuration | SPDT |
| Width | 39.4mm |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 250 V |
| Product Category | Basic / Snap Action Switches |
| Contact Form | SPDT |
| Voltage Rating DC | 250 V |
| Operating Force | 1.3 N |
| Series | Z |
| Actuator | Roller Lever |
| Part # Aliases | Z15GW2NC |
| RoHS | RoHS Compliant |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
