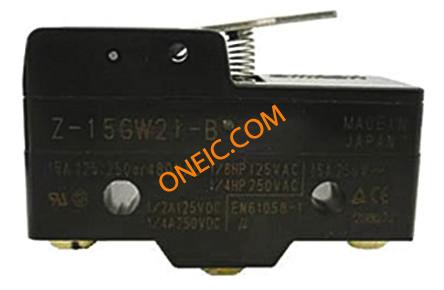

Z-15GW21-B
Basic / Snap Action Switches BASIC SWITCH
廠商型號:
Z-15GW21-B
芯天下內部編號:
232-Z-15GW21-B
生產廠商:
Omron Industrial
描述:
Basic / Snap Action Switches BASIC SWITCH
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Basic / Snap Action Switches |
| RoHS | RoHS Compliant |
| Contact Form | SPDT |
| Actuator | Lever |
| Current Rating | 15 A |
| Voltage Rating AC | 250 V |
| Voltage Rating DC | 250 V |
| Operating Force | 2.45 N to 3.43 N |
| IP Rating | IP 00 |
| Termination Style | Screw |
| Mounting | Screw |
| Series | Z |
| Factory Pack Quantity | 1 |
| Type | Basic |
| Operating Force, Torque | 160gf |
| Voltage Rating - AC | 125V |
| Electrical Life | 500,000 Cycles |
| Operating Temperature | -25°C ~ 80°C |
| Mechanical Life | 10,000,000 Cycles |
| Differential Travel | 0.040" (1.0mm) |
| Overtravel | 0.079" (2.0mm) |
| Standard Package | 1 |
| Switch Function | On-Mom |
| Operating Position | 0.748" (19.0mm) |
| Circuit | SPDT |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP00 |
| Mounting Type | Chassis Mount |
| Packaging | Bulk |
| Actuator Type | Lever, Straight |
| Release Force | 28gf |
| Other Names | Z15GW21B |
| rohs | Lead free / RoHS Compliant |
| Connection Type | Screw |
| Contact Type | Snap Action |
| Depth | 17.45mm |
| Housing Material | Thermosetting Resin |
| Length | 49.2mm |
| Maximum AC Voltage | 500V |
| Maximum Current | 15 A |
| Maximum DC Voltage | 250V |
| Maximum Operating Temperature | +80°C |
| Mechanical Life Minimum | 20000000 Operations |
| Minimum Operating Temperature | -25°C |
| Normal State Configuration | NO/NC |
| Pole and Throw Configuration | SPDT |
| Terminal Type | Screw |
| Width | 29.4mm |
| Part # Aliases | Z15GW21BNC |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
