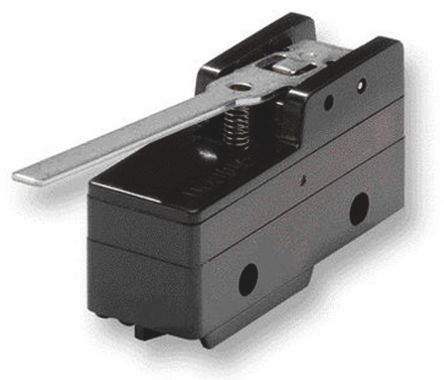

Z-15GW-B7-K
Basic / Snap Action Switches Hinge lever 70gf 15A screw terminals
廠商型號:
Z-15GW-B7-K
芯天下內部編號:
232-Z-15GW-B7-K
生產廠商:
Omron Industrial
描述:
Basic / Snap Action Switches Hinge lever 70gf 15A screw terminals
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Hinge Lever |
| EU RoHS | Compliant |
| Maximum DC Voltage Rating | 250 |
| Product Depth | 17.53 |
| Mounting | Screw Mount |
| Switch Configuration | N.O./N.C. |
| Maximum Current Rating | 15@480VAC |
| Maximum Power Rating | 186.42 |
| Pole Throw Configuration | SPDT |
| Maximum AC Voltage Rating | 480 |
| Product Height | 29.46 |
| Terminal Type | Screw |
| Operating Force | 0.7 |
| Industry Aliases | Z-15GW-B7-K |
| Subcategory | Switch Snap Action |
| Lead Time | 56 Days |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 250 V |
| Product Category | Basic / Snap Action Switches |
| Current Rating | 15 A |
| Contact Form | SPDT |
| Termination Style | Screw |
| Voltage Rating DC | 250 V |
| Unit Weight | 1.481506 oz |
| Operating Force | 0.7 N |
| Series | Z |
| Actuator | Lever |
| Part # Aliases | 4601075 Z15GWB7KNC |
| Type | Standard |
| RoHS | RoHS Compliant |
| Contact Configuration | :SPDT |
| Microswitch Type | :Snap Action |
| Switch Operation | :- |
| Operating Force Max | :70gf |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :250V |
| Weight (kg) | 0.032 |
| Tariff No. | 00000000 |
| ActuatorType | FlatLever |
| Brand/Series | ZSeries |
| ContactForm | SPDT |
| Current,Rating | 15Amps |
| IPRating | IP00 |
| NumberofPoles | 1 |
| OperatingForce | 2.47Oz. |
| Operation | SnapAction |
| Standards | ULRecognized,CSACertified,CEApproved |
| Termination | Screws |
| Voltage,Rating | 250VAC |
| rohs | RoHS Compliant Part |
