3046100
DIN Rail Terminal Blocks UT4-HESILA250(5X20) FUSE TERM BLOCK
廠商型號:
3046100
芯天下內部編號:
295-3046100
生產廠商:
Phoenix Contact
描述:
DIN Rail Terminal Blocks UT4-HESILA250(5X20) FUSE TERM BLOCK
產品類別:
Connectors, Interconnects|Terminal Blocks - Din Rail, Channel|CLIPLINE UT

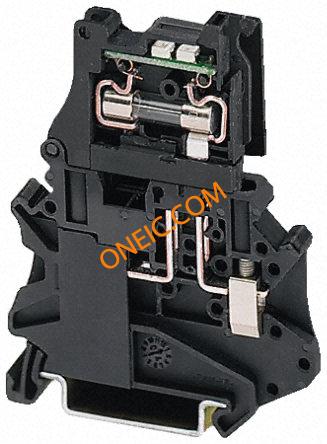

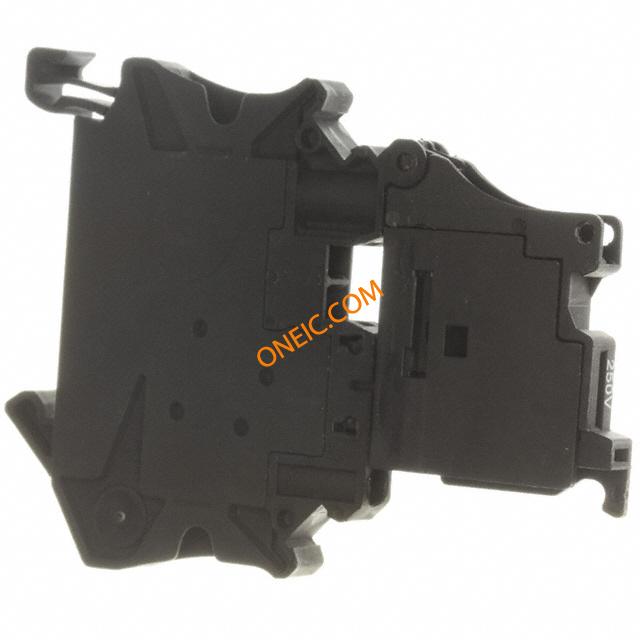

所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 10-26 |
| Product Length | 57.8 |
| EU RoHS | Compliant |
| Product Depth | 6.2 |
| Maximum Voltage Rating | 500V |
| Product Height | 80.5 |
| Housing Material | Polyamide |
| Number of Rows | 2 |
| Number of Contacts | 2 |
| Maximum Current Rating | 6.3 |
| Type | DIN Rail Fused |
| Number of Levels | 1 |
| Disconnect Type | Fuse, Lever |
| Wire Gauge or Range - mm2 | 0.14-6mm2 |
| Color | Black |
| Stripping Length | 9mm |
| Standard Package | 50 |
| Termination Style | Screw |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon |
| Current - IEC | 6.3A |
| Voltage - IEC | 250V |
| Fuse Type | 5mm x 20mm |
| Current - UL | 6.3A |
| Voltage - UL | 600V |
| Material Flammability Rating | UL94 V-0 |
| Terminal - Width | 6.2mm |
| Features | LED |
| rohs | Lead free / RoHS Compliant |
| Colour | Black |
| Current Rating | 6.3A |
| Voltage Rating | 500 V |
| Wire Size | 26 → 10 AWG |
| Factory Pack Quantity | 50 |
| Wire Gauge Max | 10 |
| Product Category | DIN Rail Terminal Blocks |
| Series | UT |
| Number of Positions / Contacts | 2 |
| Height | 80.5 mm |
| Width | 6.2 mm |
| Length | 57.8 mm |
| Flammability Rating | UL 94 V-0 |
| Wire Gauge Range | 26-10 |
| Tradename | CLIPLINE UT |
| Wire Gauge Min | 26 |
| Unit Weight | 0.625760 oz |
| RoHS | RoHS Compliant |
| AgencyApprovals | cULus,CSA |
| ContaminationClass | 3 |
| Current,Rating | 6.3A |
| Dimensions | 6.2mmx56.8mm |
| FuseType | Glass |
| InsulationMaterial | PA |
| NumberofPoles | 2Poles |
| PhoenixPartNumber | UT4-HESILA250(5X20) |
| PinSpacing | 6.2mm |
| PrimaryType | DINRail |
| RatedSurgeVoltage | 4kV |
| StrippingLength | 9mm |
| Termination | Screw |
| Voltage,Rating | 500V |
| Wire,AWG | 26-10 |
| 額定電壓 | 500 V |
| 顏色 | 黑色 |
| CAD 繪圖 | 3D CAD 模型 |
| 額定電流 | 6.3A |
| 線規(guī)格 | 26 → 10 AWG |
| 節(jié)距 | 6.2mm |
| 導軌類型兼容性 | NS35 |
| 熔斷器尺寸 | 5 x 20mm |
| 系列 | UT |
