3046140
DIN Rail Terminal Blocks UT 4-PE/MT P/P
廠商型號:
3046140
芯天下內部編號:
295-3046140
生產廠商:
Phoenix Contact
描述:
DIN Rail Terminal Blocks UT 4-PE/MT P/P
產品類別:
Connectors, Interconnects|Terminal Blocks - Din Rail, Channel|CLIPLINE UT

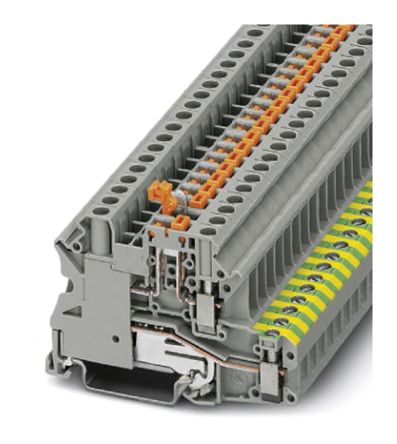

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 10-26 |
| EU RoHS | Compliant |
| Product Depth | 6.2 |
| Maximum Voltage Rating | 500V |
| Termination Method | Screw |
| Maximum Current Rating | 20 |
| Housing Material | Polyamide |
| Number of Rows | 3 |
| Gender | F |
| Number of Contacts | 3 |
| Type | Feed-Through Modular Terminal Blocks |
| Number of Levels | 2; 1 Grounded |
| Disconnect Type | Switch, Knife |
| Wire Gauge or Range - mm2 | 0.14-6mm2 |
| Color | Gray |
| Stripping Length | 9mm |
| Standard Package | 50 |
| Termination Style | Screw |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon |
| Current - IEC | 20A |
| Voltage - IEC | 500V |
| Current - UL | 16A |
| Voltage - UL | 300V |
| Material Flammability Rating | UL94 V-0 |
| Terminal - Width | 6.2mm |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 50 |
| Wire Gauge Max | 10 |
| Product Category | DIN Rail Terminal Blocks |
| Current Rating | 20 A |
| Voltage Rating | 500 V |
| Series | UT |
| Mounting Style | DIN Rail |
| Width | 6.2 mm |
| Length | 57.8 mm |
| Wire Gauge Range | 26-10 |
| Tradename | CLIPLINE UT |
| Wire Gauge Min | 26 |
| RoHS | RoHS Compliant |
| 系列 | UT |
| 端接方法 | 螺釘 |
| 額定電流 | 20A |
| 線規格 | 0.14 → 6 mm2 |
| 額定電壓 | 500 V |
| 顏色 | 灰色 |
