3046168
DIN Rail Terminal Blocks UT 4-TG-P/P KNIFE DISCON TERM BK
廠商型號:
3046168
芯天下內部編號:
295-3046168
生產廠商:
Phoenix Contact
描述:
DIN Rail Terminal Blocks UT 4-TG-P/P KNIFE DISCON TERM BK
產品類別:
Connectors, Interconnects|Terminal Blocks - Din Rail, Channel|CLIPLINE UT
客戶編號:
規格書:
查看PDF

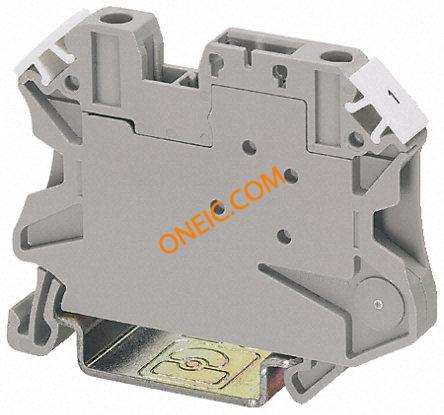

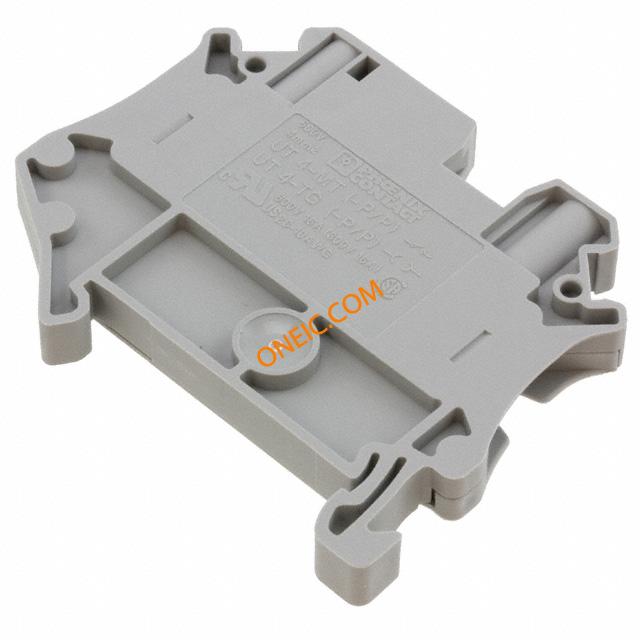

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 10-26 |
| Product Length | 57.8 |
| EU RoHS | Compliant |
| Product Depth | 6.2 |
| Gender | F |
| Termination Method | Screw |
| Product Height | 55 |
| Housing Material | Polyamide |
| Number of Contacts | 2 |
| Number of Rows | 2 |
| Maximum Voltage Rating | 500V |
| Maximum Current Rating | 20 |
| Type | Feed-Through Modular Terminal Blocks |
| Number of Levels | 1 |
| Disconnect Type | Open |
| Wire Gauge or Range - mm2 | 0.14-6mm2 |
| Color | Gray |
| Stripping Length | 9mm |
| Standard Package | 50 |
| Termination Style | Screw |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon |
| Current - IEC | 20A |
| Voltage - IEC | 500V |
| Current - UL | 16A |
| Voltage - UL | 300V |
| Material Flammability Rating | UL94 V-0 |
| Terminal - Width | 6.2mm |
| rohs | Lead free / RoHS Compliant |
| Colour | Grey |
| Current Rating | 20A |
| Series | UT |
| Voltage Rating | 500 V |
| Wire Size | 26 → 10 AWG |
| Factory Pack Quantity | 50 |
| Width | 6.2 mm |
| Product Category | DIN Rail Terminal Blocks |
| Wire Gauge Min | 26 |
| Unit Weight | 0.481137 oz |
| Number of Positions / Contacts | 2 |
| Tradename | CLIPLINE UT |
| Flammability Rating | UL 94 V-0 |
| Length | 57.8 mm |
| Wire Gauge Range | 26-10 |
| RoHS | RoHS Compliant |
| Wire Gauge Max | 10 |
| Height | 55 mm |
| Mounting Style | DIN Rail |
| AgencyApprovals | cULus,CSA |
| Cross-SectionArea | 0.14to4mm^2 |
| Current,Rating | 20A |
| Dimensions | 56.8mmLx6.2mmW |
| Length,Stripping | 9mm |
| Material,Insulation | PA |
| NumberofPoles | 2Poles |
| PhoenixPartNumber | UT4-TG-P/P |
| PinSpacing | 6.2mm |
| PrimaryType | DINRail |
| ScrewThread | M3 |
| SpecialFeatures | Universal |
| Termination | Screw |
| Torque,Tightening | 0.6Nm(Min.) |
| Voltage,Rating | 500V |
| Voltage,Surge | 6kV |
| Wire,AWG | 26-10 |
