3046184

DINレール?ターミナルブロック UT 4-MTD

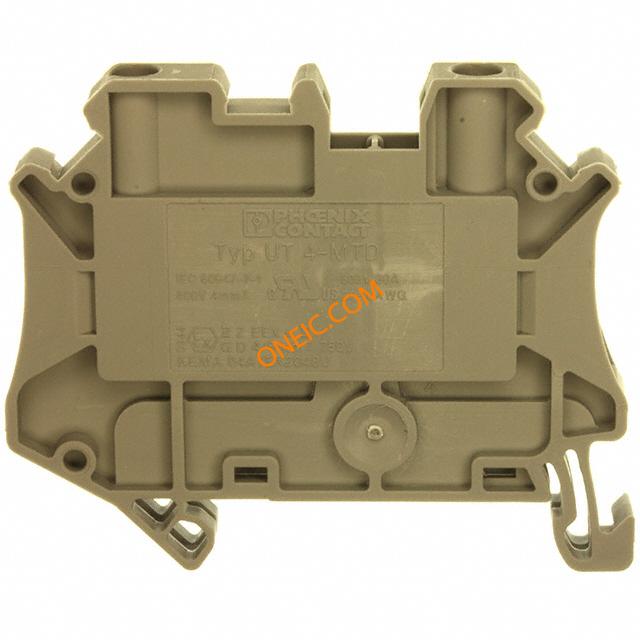

Thumbnail 3046184 Thumbnail 3046184
廠商型號: 3046184
芯天下內部編號: 295-3046184
生產廠商:
Phoenix Contact Phoenix Contact
描述: DINレール?ターミナルブロック UT 4-MTD
產品類別: Connectors, Interconnects|Terminal Blocks - Din Rail, Channel|CLIPLINE UT
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Wire Size 10-26
Product Length 56.8
EU RoHS Compliant
Product Depth 6.2
Gender F
Body Orientation Straight
Termination Method Screw
Product Height 55
Housing Material Polyamide
Number of Contacts 2
Number of Rows 2
Maximum Voltage Rating 800V
Maximum Current Rating 41
Type Universal Terminal Blocks
Number of Levels 1
Wire Gauge or Range - mm2 0.14-6mm2
Color Gray
Stripping Length 9mm
Standard Package 50
Termination Style Screw
Wire Gauge or Range - AWG 10-26 AWG
Number of Positions 2
Material - Insulation Polyamide (PA), Nylon
Current - IEC 32A
Voltage - IEC 800V
Current - UL 30A
Voltage - UL 600V
Material Flammability Rating UL94 V-0
Terminal - Width 6.2mm
rohs Lead free / RoHS Compliant
Colour Grey
Current Rating 32A
Maximum Operating Temperature +110°C
Minimum Operating Temperature -50°C
Series UT
Voltage Rating 800 V
Wire Size 26 → 10 AWG
Factory Pack Quantity 50
Wire Gauge Max 10
Product Category DIN Rail Terminal Blocks
Number of Positions / Contacts 2
Height 47.5 mm
Mounting Style DIN Rail
Width 6.2 mm
Length 57.8 mm
Flammability Rating UL 94 V-0
Wire Gauge Range 26-10
Tradename CLIPLINE UT
Wire Gauge Min 26
Unit Weight 0.403534 oz
RoHS RoHS Compliant
AgencyApprovals cULus,CSA,VDE
Cross-SectionArea 0.14to4mm^2
Current,Rating 32A
Dimensions 56.8mmLx6.2mmW
Length,Stripping 9mm
Material,Insulation PA
NumberofPoles 2Poles
PhoenixPartNumber UT4-MTD
PinSpacing 6.2mm
PrimaryType DINRail
ScrewThread M3
SpecialFeatures Universal
Termination Screw
Torque,Tightening 0.6Nm(Min.)
Voltage,Rating 800V
Voltage,Surge 8kV
Wire,AWG 26-10
電流 - UL 30A
系列 CLIPLINE UT
端接樣式 Screw
位置數 2
級別數 1
線規或范圍 - mm2 0.14-6mm2
電流 - IEC 32A
線規或范圍 - AWG 10-26 AWG
電壓 - UL 600V
類型 Feed Through
顏色 Gray
電壓 - IEC 800V
端子 - 寬度 6.2mm
