750311431
固定インダクタ Input Filter Inductr
廠商型號:
750311431
芯天下內部編號:
482-750311431
生產廠商:
Midcom / Wurth Electronics
描述:
固定インダクタ Input Filter Inductr
產品類別:
Passive Components|Inductors|Fixed Inductors
客戶編號:
規格書:
查看PDF

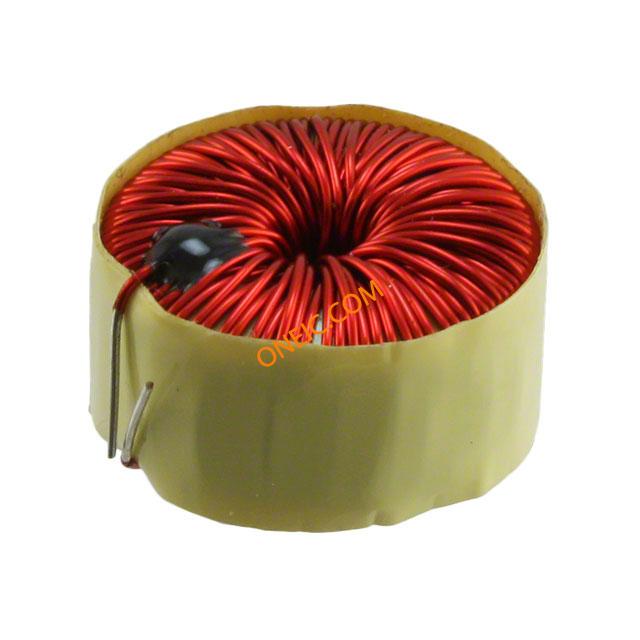

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Tray |
| Type | Toroidal |
| Current Rating | 250mA |
| DC Resistance (DCR) | 570 mOhm Max |
| Standard Package | 200 |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Size / Dimension | 0.580" Dia x 0.365" W (14.73mm x 9.27mm) |
| Mounting Type | Through Hole |
| Inductance | 750μH |
| Frequency - Test | 100kHz |
| Other Names | 732-2898 |
| Package/Case | Radial |
| Case Diameter | 14.73 mm |
| Maximum DC Resistance | 570 mOhms |
| Product | Inductors |
| Dimensions | 14.73 mm Dia. x 9.27 mm W |
| Lead Diameter | 0.38 mm |
| Maximum DC Current | 250 mA |
| Lead Spacing | 6.6 mm |
| Termination Style | Radial |
| Core Material | Epoxy Molded |
| Case Width | 9.27 mm |
| Test Frequency | 100 kHz |
| RoHS | RoHS Compliant |
| Product Range | :(Not Available) |
| Inductance Tolerance | :± 20% |
| DC Resistance Max | :0.57ohm |
| RMS Current (Irms) | :250mA |
| Case Dimensions | :14.73mm x 9.27mm |
| SVHC | :No SVHC (20-Jun-2013) |
| DC Current Rating | :250mA |
| Inductor Case Style | :Radial Leaded |
| No. of Pins | :2 |
| Weight (kg) | 0.01 |
| Tariff No. | 85045095 |
