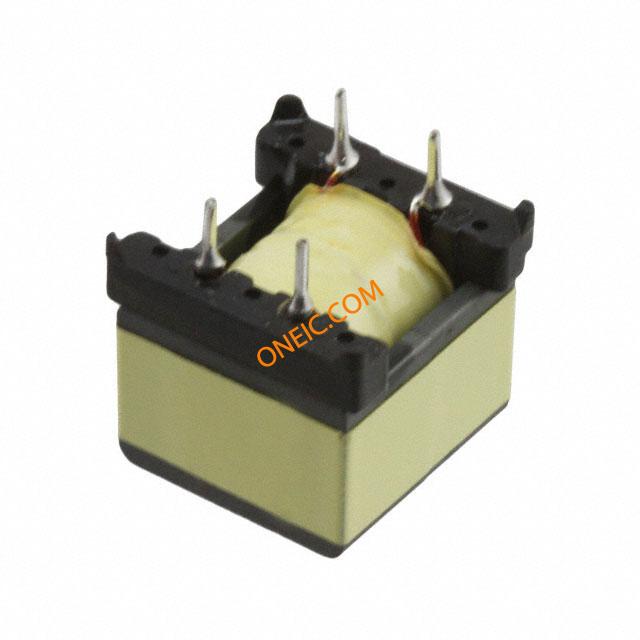

750311524
変圧器 オーディオとシグナル Buck Inductor with Aux for Europe
廠商型號:
750311524
芯天下內部編號:
482-750311524
生產廠商:
Midcom / Wurth Electronics
描述:
変圧器 オーディオとシグナル Buck Inductor with Aux for Europe
產品類別:
Passive Components|Transformers Audio & Signal
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| メーカ | Wurth Electronics |
| RoHS | RoHS 認証 |
| 絶縁電圧 | 1000 VAC |
| 動作溫度範囲 | - 40 C to + 125 C |
| 末端様式 | Through Hole |
| 寸法 | 13.97 mm L x 13.97 mm W x 12.7 mm H |
| 製品 | Transformers |
| 高さ | 12.7 mm |
| インダクタンス | 180 uH |
| 長さ | 13.97 mm |
| 最大 DC 抵抗 | 300 mOhms |
| パッケージ/ケース | 13.97 mm x 13.97 mm x 12.7 mm |
| パッケージ化 | Reel |
| 一次抵抗 | 0.11 Ohms |
| 製品タイプ | Control Transformers |
| 二次抵抗 | 0.3 Ohms |
| タイプ | Power Transformers |
| 幅 | 13.97 mm |
| Packaging | Tray |
| Type | For AC/DC Converters |
| Height - Seated (Max) | 12.70mm |
| Mounting Type | Through Hole |
| Intended Chipset | SSL2101 |
| Voltage - Isolation | 1000Vrms |
| Standard Package | 50 |
| Size / Dimension | 13.97mm L x 13.97mm W |
| Applications | LED Drivers, AC/DC SMPS |
| Operating Temperature | -40°C ~ 125°C |
| Chipset Manufacturer | NXP Semiconductors |
| Voltage - Primary | 230V |
| Other Names | 732-2900 |
| rohs | Lead free / RoHS Compliant |
| Maximum DC Resistance | 300 mOhms |
| Product | Transformers |
| Isolation Voltage | 1000 VAC |
| Dimensions | 13.97 mm L x 13.97 mm W x 12.7 mm H |
| Operating Temperature Range | - 40 C to + 125 C |
| Termination Style | Through Hole |
| Primary Resistance | 0.11 Ohms |
| Height | 12.7 mm |
| Width | 13.97 mm |
| Length | 13.97 mm |
| Inductance | 180 uH |
| Package / Case | 13.97 mm x 13.97 mm x 12.7 mm |
| Secondary Resistance | 0.3 Ohms |
| Product Type | Control Transformers |
