750370024
変圧器 オーディオとシグナル Offline Transformer
廠商型號:
750370024
芯天下內部編號:
482-750370024
生產廠商:
Midcom / Wurth Electronics
描述:
変圧器 オーディオとシグナル Offline Transformer
產品類別:
Transformers|Switching Converter, SMPS Transformers|WE-UNIT

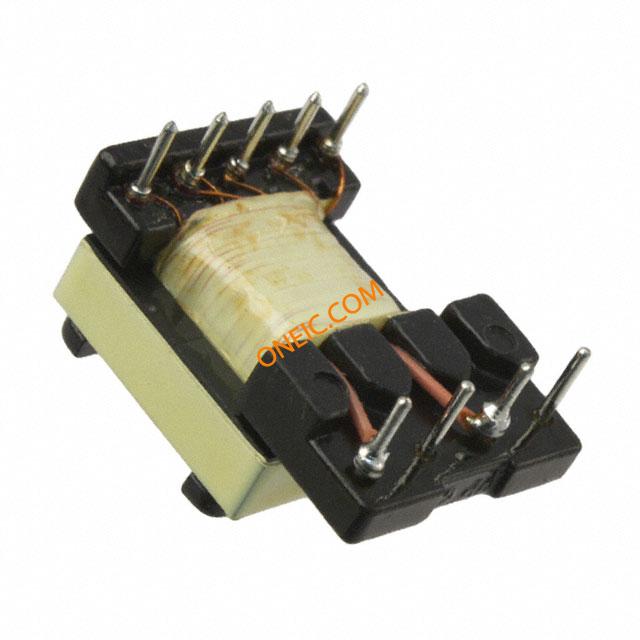

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Tray |
| Type | For AC/DC Converters |
| Voltage - Auxillary | 16V @ 50mA |
| Height - Seated (Max) | 10.80mm |
| Mounting Type | Through Hole |
| Intended Chipset | VIPER17H |
| Voltage - Primary | 120 ~ 600V |
| Size / Dimension | 19.69mm L x 13.72mm W |
| Applications | Flyback Converters |
| Operating Temperature | -40°C ~ 125°C |
| Frequency | 115kHz |
| Chipset Manufacturer | STMicroelectronics |
| Standard Package | 500 |
| Voltage - Isolation | 4000Vrms |
| Other Names | 732-2252 |
| Frequency Range | 115 kHz |
| Isolation Voltage | 4000 VAC |
| Current Rating | 500 mA |
| Dimensions | 19.69 mm L x 13.72 mm W x 10.8 mm H |
| Termination Style | Through Hole |
| Width | 13.72 mm |
| Package / Case | 19.69 mm x 13.72 mm x 10.8 mm |
| Secondary Resistance | 0.1 Ohms |
| Product | Transformers |
| Inductance | 1.6 mH |
| Product Type | Offline Transformers |
| Operating Temperature Range | - 40 C to + 125 C |
| Maximum DC Current | 500 mA |
| Length | 19.69 mm |
| Primary Resistance | 6.2 Ohms |
| RoHS | RoHS Compliant |
| Maximum DC Resistance | 6.2 Ohms |
| Height | 10.8 mm |
| Power Rating | 6 W |
| Primary Voltages | :85V to 265V |
| Secondary Voltages | :1 x 12V |
| Plug Type | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Output Voltage | :12V |
| Supply Voltage AC Max | :265V |
| Supply Voltage AC Min | :85V |
| Transformer Type | :Off Line |
| Weight (kg) | 0.01 |
| Tariff No. | 85043180 |
