750311650
Transformers Audio & Signal Common Mode Choke for US and Europe
廠商型號:
750311650
芯天下內部編號:
482-750311650
生產廠商:
Midcom / Wurth Electronics
描述:
Transformers Audio & Signal Common Mode Choke for US and Europe
產品類別:
Passive Components|Transformers Audio & Signal
客戶編號:
規格書:
查看PDF

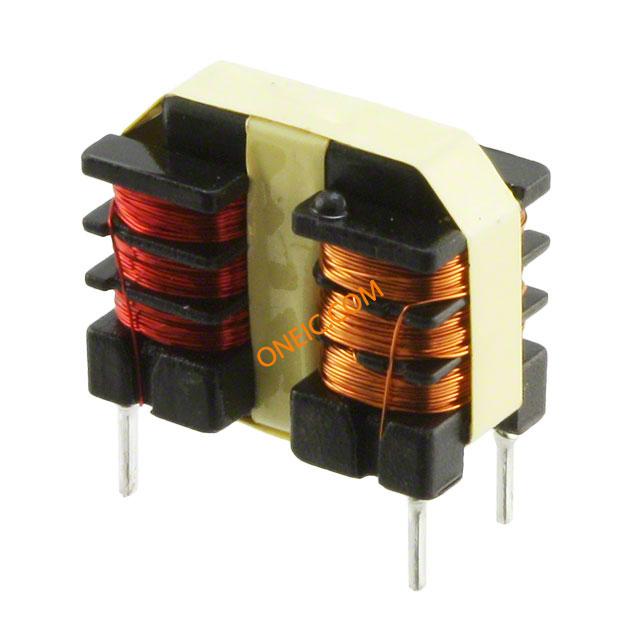

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Current | 200mA |
| Filter Type | Power Line |
| DC Resistance (DCR) | 10.05 Ohm |
| Mounting Type | Through Hole |
| Height (Max) | 0.512" (13.00mm) |
| Packaging | Tube |
| Size / Dimension | 0.620" L x 0.343" W (15.75mm x 8.71mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance | 45mH |
| Standard Package | 140 |
| Number of Lines | 2 |
| Other Names | 732-2902-5 |
| Package/Case | Vertical, 4 PC Pin |
| Primary Resistance | 10.05 Ohms |
| Maximum DC Resistance | 10.05 Ohms |
| Frequency Range | 300 kHz |
| Isolation Voltage | 1500 VAC |
| Current Rating | 180 mA |
| Dimensions | 15.75 mm L x 8.71 mm W x 13 mm H |
| Operating Temperature Range | - 40 C to + 125 C |
| Maximum DC Current | 200 mA |
| Termination Style | Through Hole |
| Product | Transformers |
| Height | 13 mm |
| Width | 8.71 mm |
| Length | 15.75 mm |
| Package / Case | 15.75 mm x 8.71 mm x 13 mm |
| Secondary Resistance | 10.05 Ohms |
| Product Type | Control Transformers |
| Type | Power Transformers |
| RoHS | RoHS Compliant |
