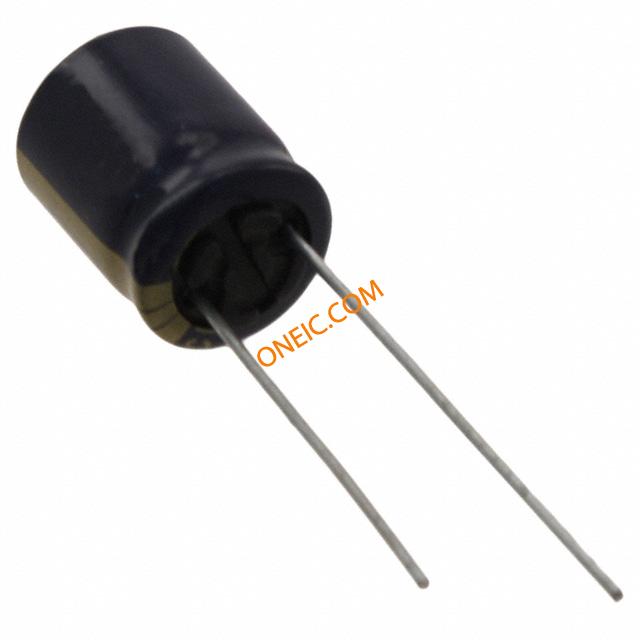

EEU-FC2A330
Cap Aluminum 33uF 100V 20% (10 X 12.5mm) Radial 5mm 306mA 3000 hr 105°C Bulk
.jpg)
廠商型號:
EEU-FC2A330
芯天下內部編號:
282-EEU-FC2A330
生產廠商:
panasonic
描述:
Cap Aluminum 33uF 100V 20% (10 X 12.5mm) Radial 5mm 306mA 3000 hr 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 33 uF |
| Voltage | 100 Vdc |
| Tolerance | 20 % |
| Ripple Current | 306 mA |
| Lifetime | 3000 h |

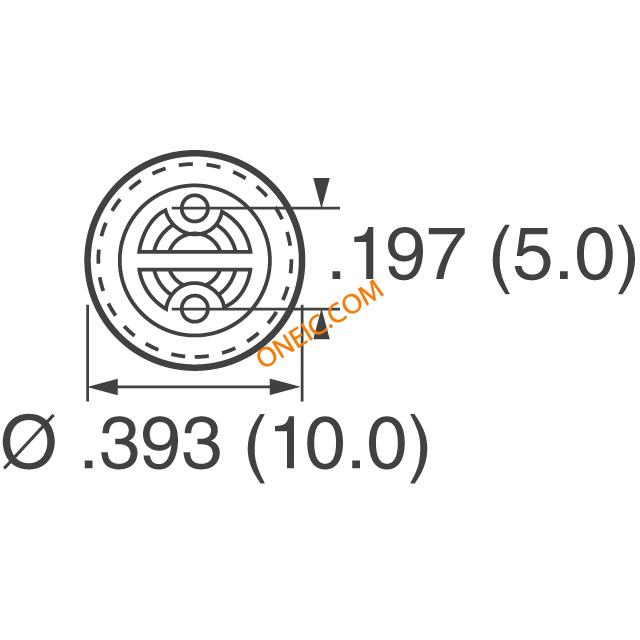

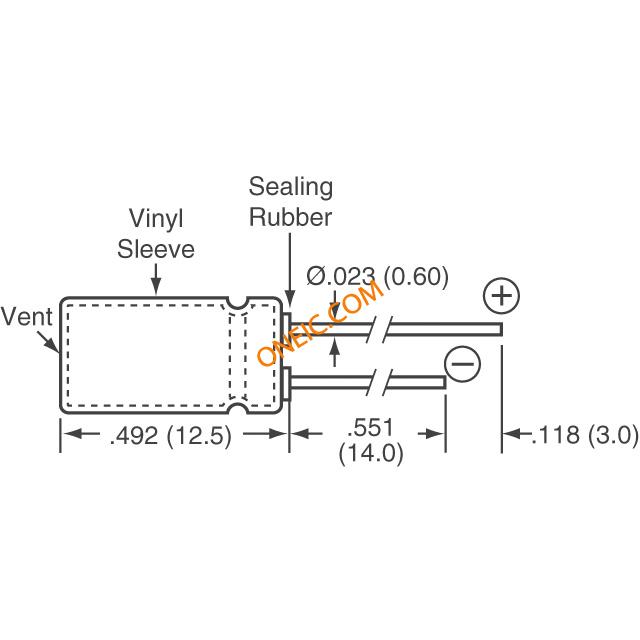

| Product Diameter | 10 mm |
| Product Height | 12.5 mm |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Style | Radial |
| Standard Package | Bulk |
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 33 uF |
| Voltage Rating | 100 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Case Diameter | 10 mm |
| Case Length | 12.5 mm |
| Lead Spacing | 5 mm |
| Product | High Temp Electrolytic Capacitors |
| Packaging | Bulk |
| Series | FC |
| Factory Pack Quantity | 200 |
| メーカ | Panasonic |
| 製品カテゴリ | アルミニウム電解キャパシタ - リード線付き |
| 靜電容量 | 33 uF |
| 公差 | 20 % |
| 定格電圧 | 100 V |
| 動作溫度範囲 | - 55 C to + 105 C |
| 末端様式 | Radial |
| ケースの直徑 | 10 mm |
| ケースの長さ | 12.5 mm |
| リード間隔 | 5 mm |
| 製品 | High Temp Electrolytic Capacitors |
| パッケージ化 | Bulk |
| シリーズ | FC |
| 工場パックの數量 | 200 |
| Lead Diameter | 0.6 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 33@2Min |
| Lifetime | 3000 |
| Product Height | 12.5 |
| Lead Pitch For Radial | 5 |
| Ripple Current | 306 |
| Type | Electrolytic |
| Product Diameter | 10 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 10 mm Dia. x 12.5 mm L |
| Load Life | 3000 h |
| ESR | 530 mOhms |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.6 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 33@2Min uA |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 12.5 mm |
| Size (mm) | 10 X 12.5 |
| Product Diameter (mm) | 10 mm |
| Brand/Series | FC Series |
| Case Size | 10 mm Dia. x 12.5 mm L |
| Current, Ripple | 0.306 A |
| Diameter, Lead | 0.6 mm |
| Life | 3000 Hours |
| Material, Element | Aluminum Electrolytic |
| Temperature Range | –55 to 105 °C |
| Termination | Radial |
| Voltage, Rating | 100 VDC |
