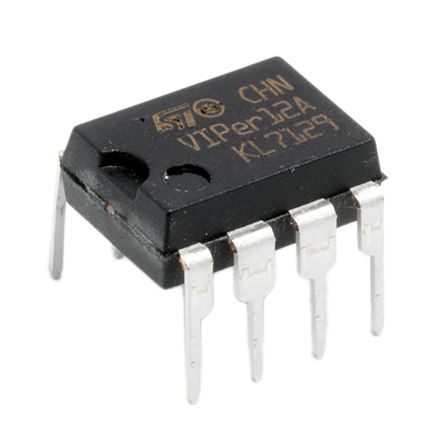

VIPER12ADIP-E
Primary Switch 8-Pin PDIP Tube
廠商型號:
VIPER12ADIP-E
芯天下內部編號:
390-VIPER12ADIP-E
生產廠商:
stmicroelectronics
描述:
Primary Switch 8-Pin PDIP Tube
產品類別:
Power Supplies|Power Misc
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8PDIP |
| Operating Temperature | -40 to 150 °C |
| Standard Package | Rail / Tube |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| EU RoHS | Compliant |
| Package Height | 2.92 |
| Mounting | Through Hole |
| Package Width | 6.1 |
| PCB | 8 |
| Package Length | 9.02 |
| Pin Count | 8 |
| Lead Shape | Through Hole |
| Matchcode | VIPER12ADIP-E |
| T(A) min | -40°C |
| Unit Pack | 50 |
| Standard Leadtime | 15 weeks |
| MOQ | 50 |
| T(A) max | 150°C |
| I(out) | 0.4A |
| Automotive | NO |
| f(s) | 60000Hz |
| V(in) max | 38V |
| Type | SMPS |
| V(out) | 730V |
| Leadfree Defin. | RoHS-conform |
| Frequency Range | 54kHz ~ 66kHz |
| Supplier Device Package | 8-DIP |
| Output Isolation | Isolated |
| Packaging | Tube |
| Voltage - Breakdown | 730V |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Voltage - Input | 8 V ~ 50 V |
| Power (Watts) | 8W |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 9.02 x 6.1 x 2.92mm |
| Height | 2.92mm |
| Length | 9.02mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Width | 6.1mm |
| Factory Pack Quantity | 50 |
| Product Category | AC/DC Converters |
| Switching Frequency | 60 kHz |
| Input / Supply Voltage - Min | 9 V |
| Input / Supply Voltage - Max | 38 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Mounting Style | Through Hole |
| Duty Cycle - Max | 16 % |
| Output Voltage | 38 V |
| Output Power | 8 W |
| RoHS | RoHS Compliant |
| Supply Current | 4.5 mA |
| Number of Outputs | 1 |
| Input Voltage | :18V |
| Supply Voltage Min | :9V |
| Supply Voltage Max | :38V |
| Voltage Regulator Case Style | :DIP |
| No. of Pins | :8 |
| No. of Outputs | :1 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423990 |
| Current,Supply | 4.5mA |
| Frequency,Oscillator | 60kHz |
| PackageType | DIP-8 |
| PrimaryType | Controllers |
| RegulatorType | Switching |
| Resistance,Thermal,JunctiontoCase | 15°C/W |
| Temperature,Operating,Range | -40to+150°C |
| Time,Fall | 100ns |
| Time,Rise | 50ns |
| Voltage,Supply | 18V |
