VIPER12ASTR-E
Primary Switch 8-Pin SO N T/R
廠商型號:
VIPER12ASTR-E
芯天下內部編號:
390-VIPER12ASTR-E
生產廠商:
stmicroelectronics
描述:
Primary Switch 8-Pin SO N T/R
產品類別:
Power Supplies|Power Misc

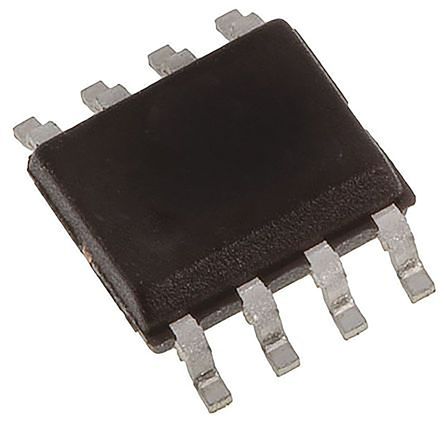

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SO N |
| Operating Temperature | -40 to 150 °C |
| Standard Package | Tape & Reel |
| Supplier Package | SO N |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Package Height | 1.65(Max) |
| Mounting | Surface Mount |
| Package Width | 4(Max) |
| PCB | 8 |
| Package Length | 5(Max) |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
| Matchcode | VIPER12ASTR-E |
| T(A) min | -40°C |
| Unit Pack | 2500 |
| Standard Leadtime | 15 weeks |
| MOQ | 2500 |
| T(A) max | 150°C |
| I(out) | 0.4A |
| Automotive | NO |
| f(s) | 60000Hz |
| V(in) max | 38V |
| Type | SMPS |
| V(out) | 730V |
| Leadfree Defin. | RoHS-conform |
| Frequency Range | 54kHz ~ 66kHz |
| Supplier Device Package | 8-SOIC N |
| Output Isolation | Isolated |
| Packaging | Tape & Reel (TR) |
| Voltage - Breakdown | 730V |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Input | 8 V ~ 50 V |
| Power (Watts) | 5W |
| rohs | Lead free / RoHS Compliant |
| Other Names | 497-6792-1 |
| Control Method | Current |
| Dimensions | 5 x 4 x 1.65mm |
| Fall Time | 100ns |
| Height | 1.65mm |
| Length | 5mm |
| Maximum Duty Cycle | 16% |
| Maximum Operating Temperature | +150 °C |
| Maximum Switching Frequency | 60 kHz |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Output Voltage | 730 V |
| Package Type | SO-8 |
| Rise Time | 50ns |
| Typical Operating Supply Voltage | 0 → 50 V |
| Width | 4mm |
| Factory Pack Quantity | 2500 |
| Product Category | AC/DC Converters |
| Switching Frequency | 60 kHz |
| Input / Supply Voltage - Min | 9 V |
| Input / Supply Voltage - Max | 38 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Mounting Style | SMD/SMT |
| Duty Cycle - Max | 16 % |
| Output Power | 5 W |
| RoHS | RoHS Compliant |
| Supply Current | 4.5 mA |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 150C |
| Operating Temperature (Min) | -40C |
| Case Length | 5 mm |
| Screening Level | Automotive |
| Rad Hardened | No |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| No. of Outputs | :1 |
| Voltage Regulator Case Style | :SOIC |
| Weight (kg) | 0.003 |
| Tariff No. | 85423300 |
