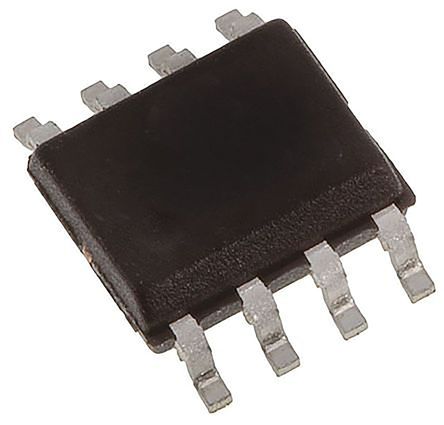

VIPER12AS-E
Primary Switch 8-Pin SO N Tube
廠商型號:
VIPER12AS-E
芯天下內部編號:
390-VIPER12AS-E
生產廠商:
stmicroelectronics
描述:
Primary Switch 8-Pin SO N Tube
產品類別:
Power Supplies|Power Misc
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SO N |
| Operating Temperature | -40 to 150 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SO N |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Package Height | 1.65(Max) |
| Mounting | Surface Mount |
| Package Width | 4(Max) |
| PCB | 8 |
| Package Length | 5(Max) |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
| Matchcode | VIPER12AS-E |
| T(A) min | -40°C |
| Unit Pack | 100 |
| Standard Leadtime | 15 weeks |
| MOQ | 100 |
| T(A) max | 150°C |
| I(out) | 0.4A |
| Automotive | NO |
| f(s) | 60000Hz |
| V(in) max | 38V |
| Type | SMPS |
| V(out) | 730V |
| Leadfree Defin. | RoHS-conform |
| Frequency Range | 54kHz ~ 66kHz |
| Supplier Device Package | 8-SOIC N |
| Output Isolation | Isolated |
| Packaging | Tube |
| Voltage - Breakdown | 730V |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Input | 8 V ~ 50 V |
| Power (Watts) | 5W |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5 x 4 x 1.25mm |
| Height | 1.25mm |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Width | 4mm |
| Factory Pack Quantity | 100 |
| Product Category | AC/DC Converters |
| Switching Frequency | 60 kHz |
| Input / Supply Voltage - Min | 9 V |
| Input / Supply Voltage - Max | 38 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Mounting Style | SMD/SMT |
| Duty Cycle - Max | 16 % |
| Output Power | 5 W |
| RoHS | RoHS Compliant |
| Supply Current | 4.5 mA |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 150C |
| Operating Temperature (Min) | -40C |
| Case Length | 5 mm |
| Screening Level | Automotive |
| Rad Hardened | No |
| Primary Input Voltage | :50V |
| No. of Outputs | :1 |
| Output Voltage | :730V |
| Voltage Regulator Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :12 |
| Frequency | :60kHz |
| IC Generic Number | :12 |
| Input Voltage Max | :38V |
| Logic Function Number | :12 |
| On Resistance Rds(on) | :27ohm |
| Output Current Max | :0.1mA |
| Power Supply IC Type | :PWM controller |
| Power Supply Type | :SMPS |
| Supply Voltage Max | :38V |
| Supply Voltage Min | :9V |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423990 |
| Case | SO8 |
| Output current | 100μA |
| Integrated circuit type | driver |
| Gross weight | 0.22 g |
| Output voltage | 0...730V |
| Number of channels | 1 |
| Supply voltage | 9...38V DC |
| Multiplicity | 1 |
| Kind of integrated circuit | SMPS controller |
| Collective package [pcs] | 100 |
| spg | 100 |
