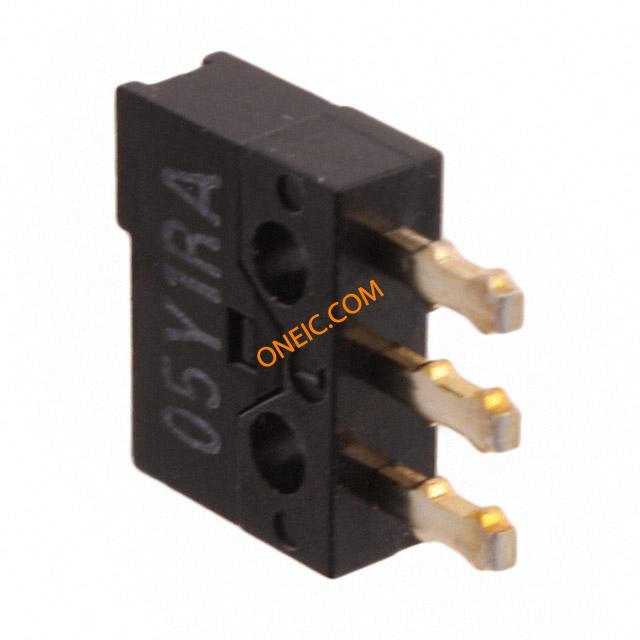

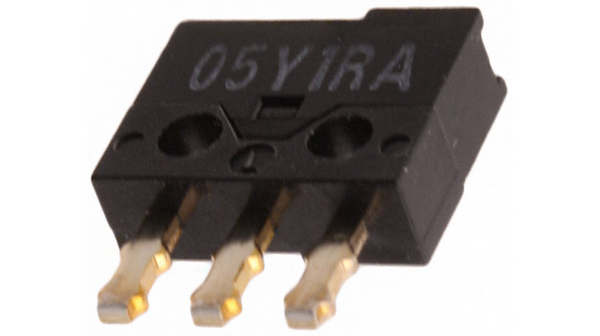

D2MQ-1-105

Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.05A 30VDC 1.18N Screw Mount/Through Hole

Thumbnail D2MQ-1-105 Thumbnail D2MQ-1-105 Thumbnail D2MQ-1-105 Thumbnail D2MQ-1-105
廠商型號: D2MQ-1-105
芯天下內部編號: 232-D2MQ-1-105
生產廠商:
omron electronics omron electronics
描述: Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.05A 30VDC 1.18N Screw Mount/Through Hole
產品類別: Switches and Relays|Switches|Snap Action Switch
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Pole Throw Configuration SPDT
Switch Configuration N.O./N.C.
Mounting Screw Mount/Through Hole
Actuator Style Pin Plunger
Terminal Type PC Pins
Operating Force 1.18 N
Maximum Current Rating 0.05@30VDC A
Maximum DC Voltage Rating 30 V
Contact Plating Gold
Mechanical Life 30000 Cycles
Operating Temperature -15 to 70 °C
Standard Package Trays
Industry Aliases D2MQ-1-105
Subcategory Switch Snap Action
Lead Time 138 Days
Packaging Bulk
Differential Travel 0.004" (0.1mm)
Switch Function On-Mom
Current Rating 50mA (DC)
Operating Force, Torque 120gf
Mounting Type Through Hole
Termination Style PC Pin
Electrical Life 10,000 Cycles
Operating Position 0.224" (5.7mm)
Overtravel 0.004" (0.1mm)
Actuator Type Round (Pin Plunger)
Voltage Rating - DC 30V
Ingress Protection IP40
Pretravel 0.015" (0.4mm)
Release Force 21gf
Circuit SPDT
rohs Lead free / RoHS Compliant
Factory Pack Quantity 100
Product Category Basic / Snap Action Switches
Contact Form SPDT
Voltage Rating DC 30 V
Series D2MQ
Actuator Lever
Part # Aliases 365962
Type Miniature
RoHS RoHS Compliant
ContactForm SPDT
Current,Rating 50mA
Termination SolderLugs
Voltage,Rating 30VDC
Description straight
Contacts 1 change-over (CO)
Rated current 0.05 A
Actuation Plunger
Actuation force 1.18 N
Termination type PCB
Rated voltage 30
Temperature range -15...+70 °C
Protection rating IP 40
Contact material Au plated
