D2MQ-1-TR
Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.5A 30VDC 1.18N Screw Mount/Through Hole
廠商型號:
D2MQ-1-TR
芯天下內部編號:
232-D2MQ-1-TR
生產廠商:
omron electronics

描述:
Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.5A 30VDC 1.18N Screw Mount/Through Hole
產品類別:
Switches and Relays|Switches|Snap Action Switch
客戶編號:
規格書:
查看PDF

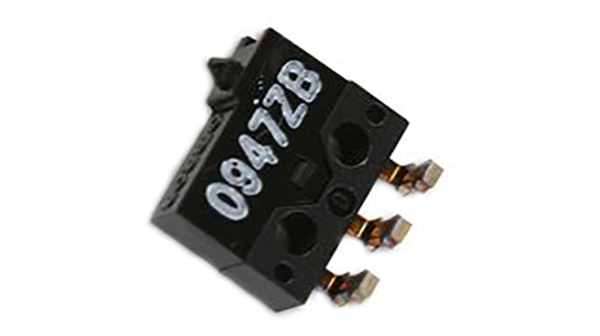

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
Pole Throw Configuration | SPDT |
Switch Configuration | N.O./N.C. |
Mounting | Screw Mount/Through Hole |
Actuator Style | Pin Plunger |
Terminal Type | PC Pins |
Operating Force | 1.18 N |
Maximum Current Rating | 0.5@30VDC A |
Maximum DC Voltage Rating | 30 V |
Contact Plating | Silver |
Mechanical Life | 30000 Cycles |
Operating Temperature | -15 to 70 °C |
Standard Package | Tape & Reel |
Industry Aliases | D2MQ-1-TR |
Subcategory | Switch Snap Action |
Lead Time | 70 Days |
Current Rating | 500mA (DC) |
Operating Force, Torque | 120gf |
Electrical Life | 10,000 Cycles |
Termination Style | PC Pin |
Differential Travel | 0.004" (0.1mm) |
Overtravel | 0.004" (0.1mm) |
Pretravel | 0.015" (0.4mm) |
Switch Function | On-Mom |
Operating Position | 0.224" (5.7mm) |
Circuit | SPDT |
Voltage Rating - DC | 30V |
Ingress Protection | IP40 |
Mounting Type | Through Hole, Right Angle |
Packaging | Bulk |
Actuator Type | Round (Pin Plunger) |
Release Force | 21gf |
Other Names | D2MQ1TR |
rohs | Lead free / RoHS Compliant |
CAD Drawing | 3D CAD Model |
Contact Configuration | SPDT-NO/NC |
Contact Current Rating | 0.5 A @ 30 V dc |
Contact Material | Silver Plated |
IP Rating | IP40 |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -15°C |
Factory Pack Quantity | 100 |
Product Category | Basic / Snap Action Switches |
Contact Form | SPDT |
Voltage Rating DC | 30 V |
Series | D2MQ |
Actuator | Plunger, Pin |
Part # Aliases | 365961 9901922 |
RoHS | RoHS Compliant |
Microswitch Type | :Snap Action |
Switch Operation | :(Not Applicable) |
Operating Force Max | :1.18N |
Contact Voltage DC Nom | :30V |
Contact Current Max | :500mA |
Switch Terminals | :Solder |
SVHC | :No SVHC (20-Jun-2013) |
Actuation Type | :Plunger |
Contact Current AC | :500mA |
Contact Current DC Max | :500mA |
Contact Resistance | :100mohm |
Contact Voltage DC Max | :30V |
External Depth | :8.1mm |
External Length / Height | :6.5mm |
External Width | :2.6mm |
Fixing Centres | :4.0mm |
Fixing Centres LxW | :4mm |
Insulation Resistance | :100Mohm |
No. of Electrical Operations | :10000 |
No. of Mechanical Operations | :30000 |
Operating Temperature Max | :70°C |
Operating Temperature Min | :-15°C |
Pre-travel | :0.4mm |
Weight (kg) | 0.003 |
Tariff No. | 85365007 |
