D2MQ-1L-TL
Basic / Snap Action Switches SNAP SWITCH
廠商型號:
D2MQ-1L-TL
芯天下內部編號:
232-D2MQ-1L-TL
生產廠商:
Omron Electronics
描述:
Basic / Snap Action Switches SNAP SWITCH
產品類別:
Switches|Snap Action, Limit Switches|D2MQ

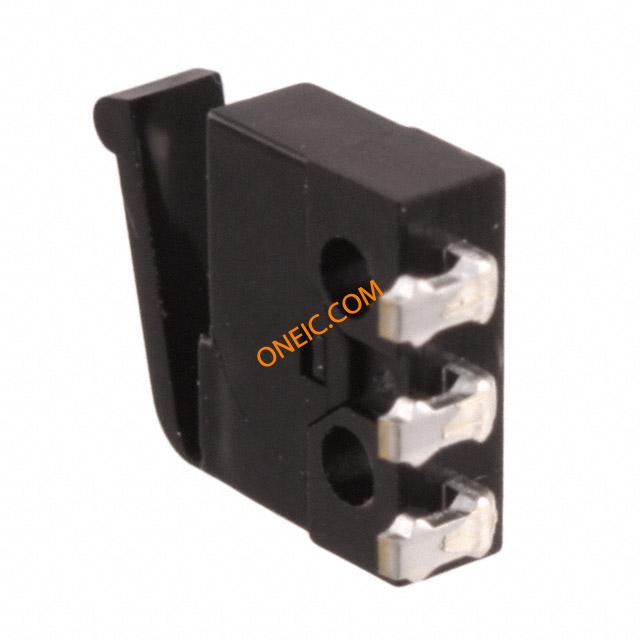

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | D2MQ-1L-TL |
| Subcategory | Switch Snap Action |
| Lead Time | 138 Days |
| Packaging | Bulk |
| Differential Travel | 0.027" (0.7mm) |
| Switch Function | On-Mom |
| Current Rating | 500mA (DC) |
| Operating Force, Torque | 60gf |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Electrical Life | 10,000 Cycles |
| Operating Position | 0.264" (6.7mm) |
| Overtravel | 0.011" (0.3mm) |
| Operating Temperature | -15°C ~ 70°C |
| Actuator Type | Lever, Leaf |
| Standard Package | 100 |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP40 |
| Pretravel | 0.094" (2.4mm) |
| Release Force | 8gf |
| Mechanical Life | 30,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 100 |
| Product Category | Basic / Snap Action Switches |
| Mounting | Through Hole |
| Contact Form | SPDT |
| Voltage Rating DC | 30 V |
| Operating Force | 0.6 N |
| Series | D2MQ |
| Actuator | Lever |
| Part # Aliases | 365955 D2MQ1LTLNC |
| Type | Miniature |
| RoHS | RoHS Compliant |
| Description | left angled |
| Contacts | 1 change-over (CO) |
| Rated current | 0.5 A |
| Actuation | Spring lever |
| Actuation force | 0.59 N |
| Termination type | PCB |
| Rated voltage | 30 |
| Temperature range | -15...+70 °C |
| Protection rating | IP 40 |
| Contact material | Ag |
