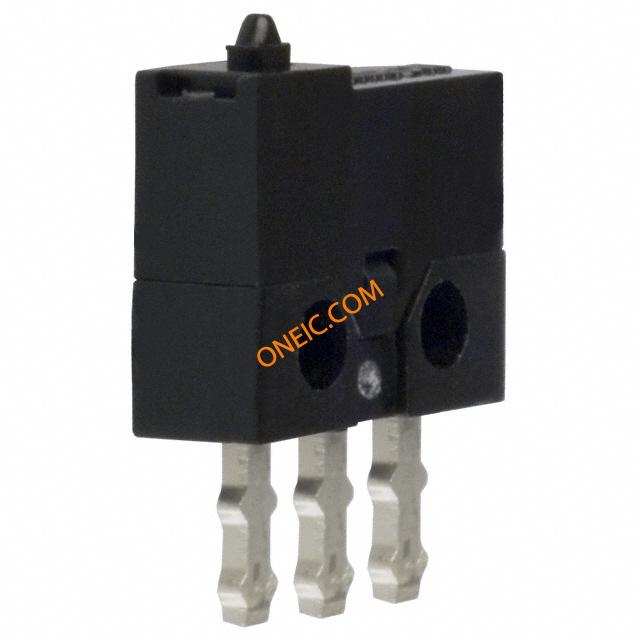

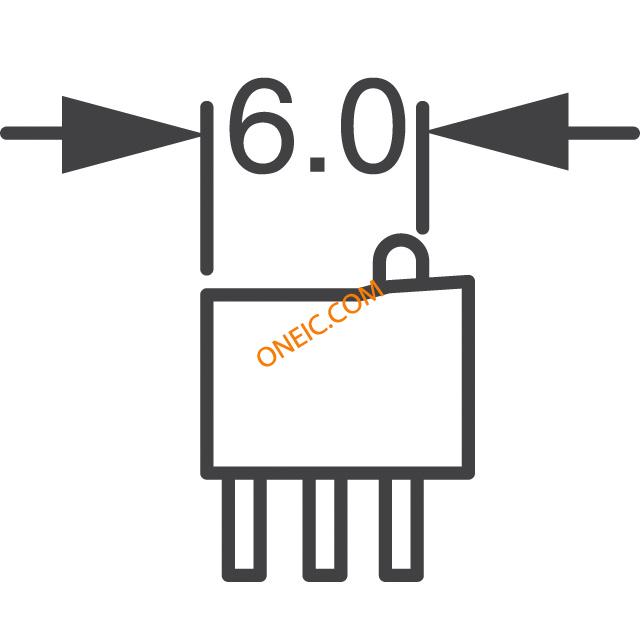

D2MQ-1
Basic / Snap Action Switches PIN PLUNGER AG-P
廠商型號:
D2MQ-1
芯天下內部編號:
232-D2MQ-1
生產廠商:
Omron Electronics
描述:
Basic / Snap Action Switches PIN PLUNGER AG-P
產品類別:
Switches|Snap Action, Limit Switches|D2MQ
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Pin Plunger |
| Electrical Life | 10000 |
| Product Length | 8.2 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Maximum DC Voltage Rating | 30 |
| Product Depth | 2.7 |
| Mounting | Through Hole |
| Switch Configuration | N.O./N.C. |
| Product Height | 7.7 |
| Pole Throw Configuration | SPDT |
| Operating Force | 1.18 |
| Contact Plating | Silver |
| Terminal Type | PC Pins |
| Minimum Operating Temperature | -15 |
| Maximum Current Rating | 0.5@30VDC |
| Mechanical Life | 30000 |
| Actuator Material | Plastic |
| Industry Aliases | D2MQ-1 |
| Subcategory | Switch Snap Action |
| Lead Time | 96 Days |
| Packaging | Bulk |
| Differential Travel | 0.004" (0.1mm) |
| Switch Function | On-Mom |
| Current Rating | 500mA (DC) |
| Operating Force, Torque | 120gf |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Electrical Life | 10,000 Cycles |
| Operating Position | 0.224" (5.7mm) |
| Overtravel | 0.004" (0.1mm) |
| Operating Temperature | -15°C ~ 70°C |
| Actuator Type | Round (Pin Plunger) |
| Standard Package | 100 |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP40 |
| Pretravel | 0.015" (0.4mm) |
| Release Force | 21gf |
| Mechanical Life | 30,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| CAD Drawing | 3D CAD Model |
| Contact Configuration | SPDT-NO/NC |
| Contact Current Rating | 0.5 A @ 30 V dc |
| Contact Material | Silver Plated |
| IP Rating | IP40 |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -15°C |
| Operating Force | 1.18 N |
| Factory Pack Quantity | 100 |
| Product Category | Basic / Snap Action Switches |
| Contact Form | SPDT |
| Voltage Rating DC | 30 V |
| Series | D2MQ |
| Actuator | Plunger, Pin |
| Part # Aliases | 365952 9774769 |
| Type | Miniature |
| RoHS | RoHS Compliant |
| Microswitch Type | :Snap Action |
| Switch Operation | :(Not Applicable) |
| Operating Force Max | :1.18N |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :500mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Actuation Type | :Plunger |
| Contact Current AC | :500mA |
| Contact Current DC Max | :500mA |
| Contact Resistance | :100mohm |
| Contact Voltage DC Max | :30V |
| External Depth | :8.1mm |
| External Length / Height | :6.5mm |
| External Width | :2.6mm |
| Fixing Centres | :4.0mm |
| Fixing Centres LxW | :4mm |
| Insulation Resistance | :100Mohm |
| No. of Electrical Operations | :10000 |
| No. of Mechanical Operations | :30000 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-15°C |
| Pre-travel | :0.4mm |
| Weight (kg) | 0.003 |
| Tariff No. | 85365007 |
| Leads | for PCB, straight |
| DC contacts rating (at resistance load) | 0.5 A / 30 VDC |
| Switching torque | 1.18N |
| Multiplicity | 1 |
| Switches features | without lever |
| Contacts configuration | SPDT |
| Gross weight | 0.3 g |
| Operating temperature | -15...70°C |
| Stable positions number | 1-position |
| Body dimensions | 8.2 x 2.7 x 6.5mm |
| Terminal pitch | 2.5mm |
| Sealing | IP40 |
| Switching method | ON-(ON) |
| Switch type | microswitch |
